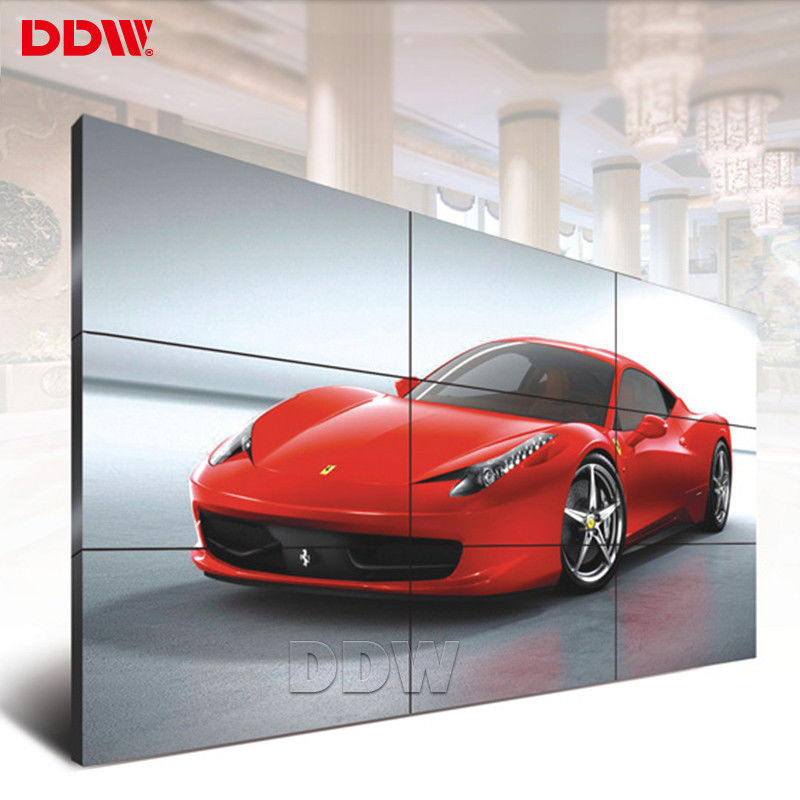

Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel

Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel

    • Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel
    • Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel
    • Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel
    • Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel
  • Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-DV490FHM-NV0

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: CCTV Video Wall Total Physical Bezel: 3.5 Mm
    Resolution: 1920*1080 Backlit Type: LED
    Panel Width: 1077.6mm Panel Height: 607.8mm
    Surface: Anti-glare Refresh Rate: 60Hz

    49inch 3.5mm CCTV Video Wall for fashion store advertising DV490FHM-NV0





    CCTV Video Wall ​Key features:

    Support a variety of signal ports.

    Built-in splicing module, Support splice function

    Support creating one window PIP across the screen, roaming service, scaling,PIP

    Support matrix joint control.

    Unique DNX motion supplement image processing technology,

    Dynamic image without motion trail

    Splicing image processing RS-232 RJ45 loop-circuit input/output.

    Input by remote control with wire, mobile receiver head.



    49" CCTV Video Wall main parameters
    1, Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
    2, 500nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut .
    3, FHD physical resolution 1920x1080
    4, Only 3.5mm ultra narrow bezel, high quality ,practical ,good vision effect.
    5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
    6, Flexible structure design ---easy installation ,extensible,arbitrary combination
    7, Stable performance,suitable working for a long time



    Advertising video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



    CCTV Video Wall ​Specifications:

    Active Screen Diagonal 49"
    Bezel Width Total: 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Panel Dimension(WxHxD)

    1077.6x607.8x59.67mm

    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    CCTV Video Wall ​Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Police Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow BezelPolice Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow BezelPolice Station CCTV Video Wall 49 Inch Indoor Semi Outdoor 3.5mm Ultra Narrow Bezel
