Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits

Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits

  • Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits
  • Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits
  • Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits
  • Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits
Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits
Product Details:
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN13
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Commercial Video Wall Backlight: LED
Application: Shopping Mall Cooling: Low Noise Fans
Bezel Size: 1.7 Mm Panel Size: 46''
Dot Pitch: 0.5302x0.5302 Mm Responsive Time: 6ms
Highlight:

lcd screen wall

,

seamless lcd video wall

46 inch 1.7mm ultra narrow bezel LCD video wall DDW-LW460HN13





DDW LCD video wall key features:

  •  Panel size: 46″, 49″, 55″, 60″ ; Optional.
  •  Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  Interfaces: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output;
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile  phone shop, restaurant;



DDW LCD video wall basic informations:

  •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing;
  •  Dot Pitch: 0.5302x0.5302 mm; Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;

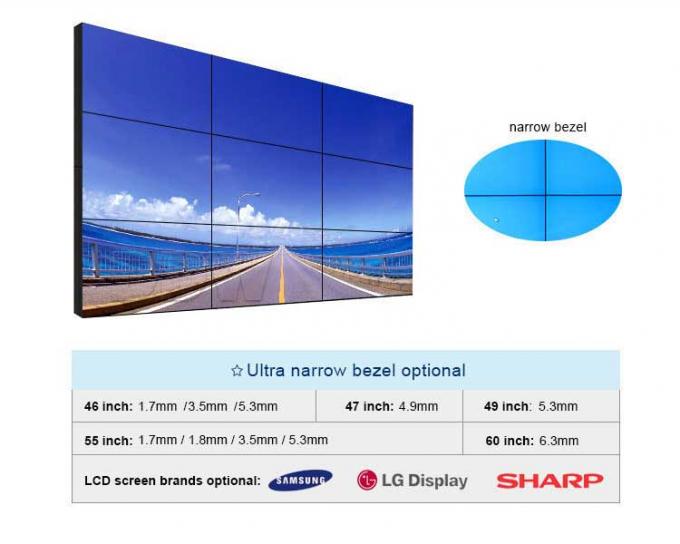

Narrow Bezel:

  •  46 inch LCD video wall narrow bezel available: 1.7 mm, 3.5 mm, 5.3 mm;
  •  3×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;



View Angle

  •  178 degree wide viewing angle, the full range of display;
  •  Different modules optional: such as heating module, built in camera, air conditioner etc;



HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

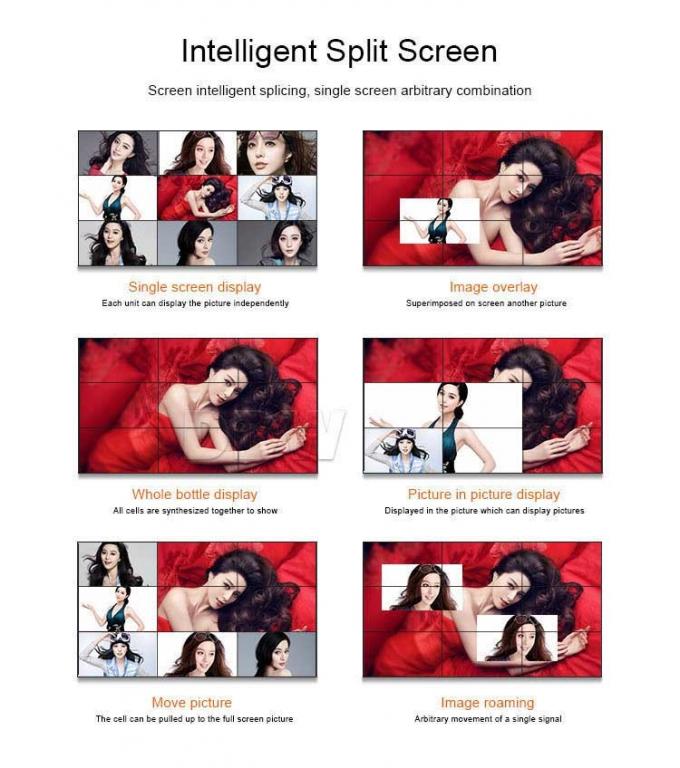

Functions:

  •  Supporting 225 units (15×15) multi-matrix;
  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.



Panel dimension and interfaces:

  •  Dimension: 1020.02x574.61x68.1mm;
  •  Interface: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output



Total bezel width

  •  Bezel size:1.7 mm;
  •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

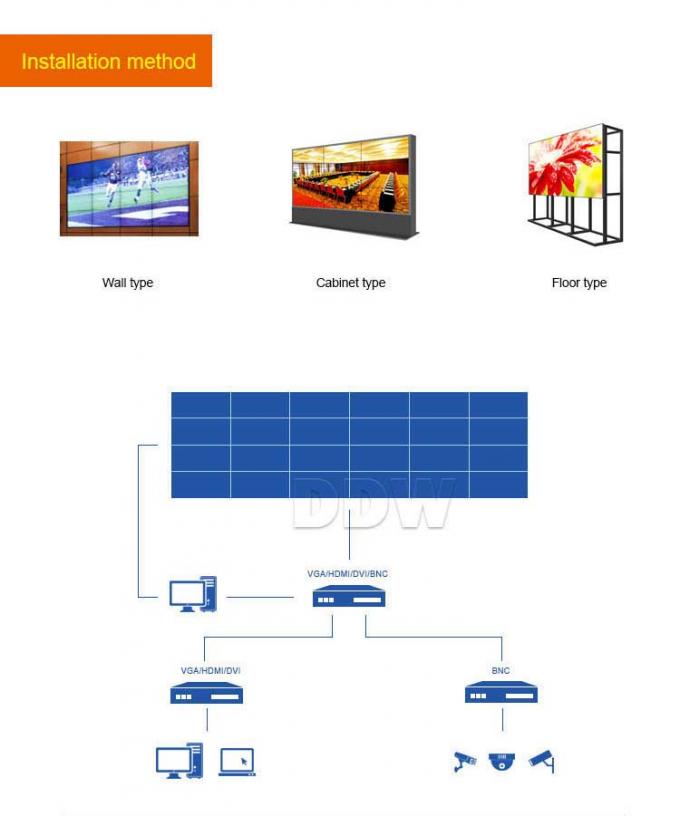

Connection topology and applications:

  •  Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
  •  Applications: Financial center, real estate center, security room, cinema, theater, etc;



Panel Size 46″
Total bezel width 1.7 mm
Active Display Area

1020.02x574.61x68.1mm

Resolution 1920 x 1080; 3840 x 2160
Brightness 700 nits
Contrast ratio 4000:01:00
Responsive time 6ms
Warranty 1 year





LCD Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits 0Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits 1Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits 2
