DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer

China DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer supplier
DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer supplier DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer supplier DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer supplier

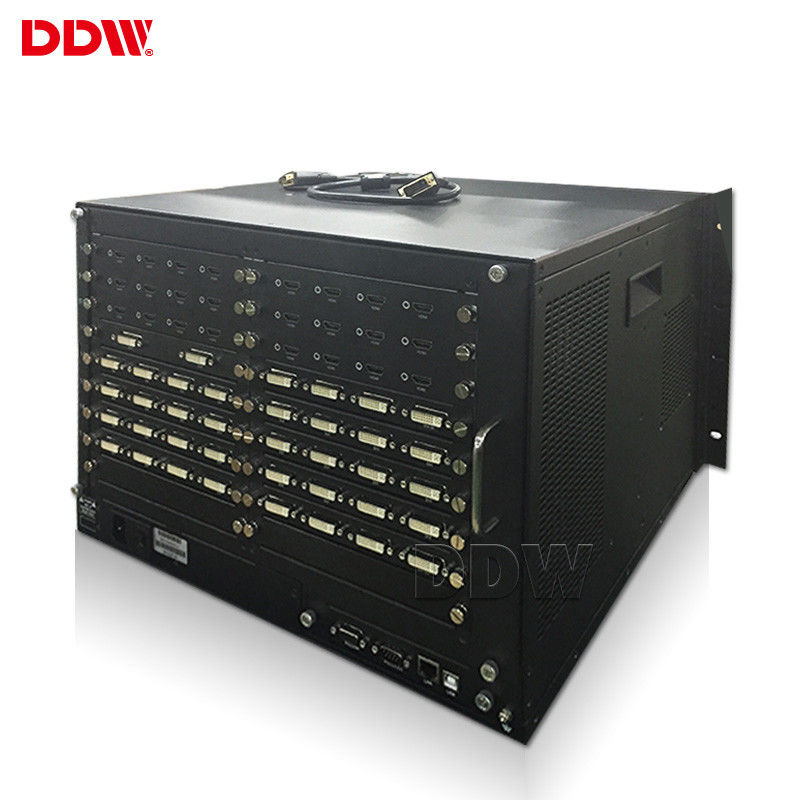

Large Image :  DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VM1717

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Input/output Numbers: 17x17 Color Quality: 32bit
Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP Control Method: RS232,LAN
Product Name: Video Wall Matrix Working Temperature: -20°C——60°C
Working Time: 365x7x24hrs RS232 IN: 1

Multi Display Controller DIY Video Wall Matrix For Monitoring Directing Scheduling System



Pure hardware architecture board any combination:

  •  Industrial chassis with CPCI structure;
  •  Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
  •  Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;


Multi – group video wall management:

  •  It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
  •  Setting different resolutions, adjust colors and other parameters.


LCD Video Wall Matrix key features:

  •  With special virtual display technology, full channel real HD 1080P signal processing;
  •  Signal Preview function available;
  •  Supporting PC, Android APK, iOS APP control software;
  •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
  •  Scaling and positioning, size is scalable and position adjustable;
  •  With background logo display function. It can be customized;
  •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;


DDW Video Wall Matrix Technical Specifications

Item No.ComponentsDescriptionsQTY/signalsignal type
1Video wall Matrix SwitcherDDW-VM171717HDMI input ,17HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board34HDMI
2SoftwareInstalled in PC to control,OS windows1
3AccessoriesPower plug,IR Controller,English Manual1
input card
interface17*HDMI type a
signal protocalHDMI 1.3, HDCP 1.3, compatible DVI1..0
EDIDsupport
input bandwidth165MHZ
resolutionHDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
output card
interface17*HDMI type a
signal protocalHDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth165MHZ
output resolution

1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,
1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,
1280x1024@60Hz,
1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,1024x768@60Hz,
800x600@60Hz

switch effectseamless switching
System function
RS232 IN1
IR IN1
AC INAC100-240V
Color System SupportPAL/NTSC/SECAM
Control TypeIR Remote &Software Control
Menu LanguageEnglish/Chinese(Multiple Language can be customized)
Vertical/Horizontal DisplaySupport
Combine DisplaySupport combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show one image
Solid DisplaySupport each screen input with separate signal
PIP/Zoom/RoamingNO
Multiple InterfacesSupport DVI,HDMI,VGA,AV &multiple signal inputs
Rich ResolutionSupport 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.


Technical specification of input/output connectors

VGA/RGB inputInput: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video inputInput connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI outputResolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
SignalsConnectorsType
Composite VIDEO inputBNCfemale
VGA input15 pin HD D-Subfemale
VGA output15 pin HD D-Subfemale
DVI output24+5 or 24+1 standardfemale
AUX RS-2329-pin D-Subfemale
Main RS-2329-pin D-Subfemale


DIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall MultiplexerDIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall MultiplexerDIY HDMI Video Wall Equipment , Monitoring Directing Scheduling System Video Wall Multiplexer
