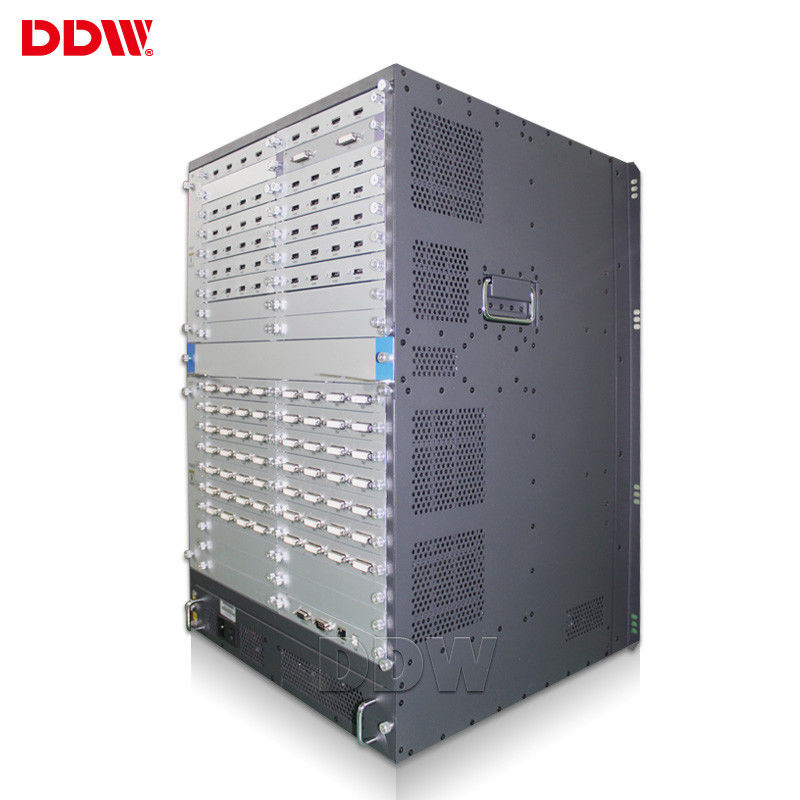

Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers

Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers

    • Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers
    • Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers
    • Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers
  • Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VM0808

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Unit/Unit
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Video Wall Matrix Output Resolution: 1920x1080
    Roam,zoom,PIP: Support Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Input Numbers: 8 Output Numbers: 8
    High Light:

    video wall multiplexer

    ,

    multi screen video controller

    Customized Video Wall Processor APP Remote Control 128 Maximum Output Numbers





    Video Wall Matrix​ basic information:

    1. Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch

    2. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

    3. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

    4. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

    5. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

    6. Public Service: Hospital, School, Telecom, Post office, etc.

    7. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.



    LCD Video Wall Matrix key features:

    1, Compact and expandable inputs and outputs

    40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.

    2, Power-saving design

    Build-in power-saving graphics board and parts reduction effect by one unit structure design.

    3, Easy Replacement

    Rear detachable input-output board introduction and expansion can be easily.

    User can replace the input and output board with a single unit without removing the entire chassis from the rack.

    4, 2 split ~ 4 split display function (one single screen)

    One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.

    5, Video Wall configuration support

    iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.

    6, Seamless Switching Processor Inside

    No joints , no black screen , smooth video switching processor inside.



    DDW Video Wall Matrix Technical Specifications

    Item No. Components Descriptions QTY/signal signal type
    1 Video wall Matrix SwitcherDDW-VM128128 128HDMI input ,128HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board 256 HDMI
    2 Software Installed in PC to control,OS windows 1
    3 Accessories Power plug,IR Controller,English Manual 1
    input card
    interface 128*HDMI type a
    signal protocal HDMI 1.3, HDCP 1.3, compatible DVI1..0
    EDID support
    input bandwidth 165MHZ
    resolution HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
    output card
    interface 128*HDMI type a
    signal protocal HDMI 1.3, VGA 1.0, compatible DVI1..0
    output bandwidth 165MHZ
    output resolution

    1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,

    1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,

    1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,

    1024x768@60Hz,800x600@60Hz

    switch effect seamless switching
    System function
    RS232 IN 1
    IR IN 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)
    Vertical/Horizontal Display Support
    Combine Display Support combine any horizental &vertical numbers of screens and show display
    Support combine all screens together to show one image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming NO
    Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
    Payment Terms &Conditions
    Warranty: 3years warranty,extra fee will be charged for additional years warranty.



    Technical specification of input/output connectors

    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female



    Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers 0Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers 1Customized Video Wall Matrix APP Remote Control 128 Maximum Output Numbers 2
