165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats

China 165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats supplier
165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats supplier 165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats supplier 165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats supplier

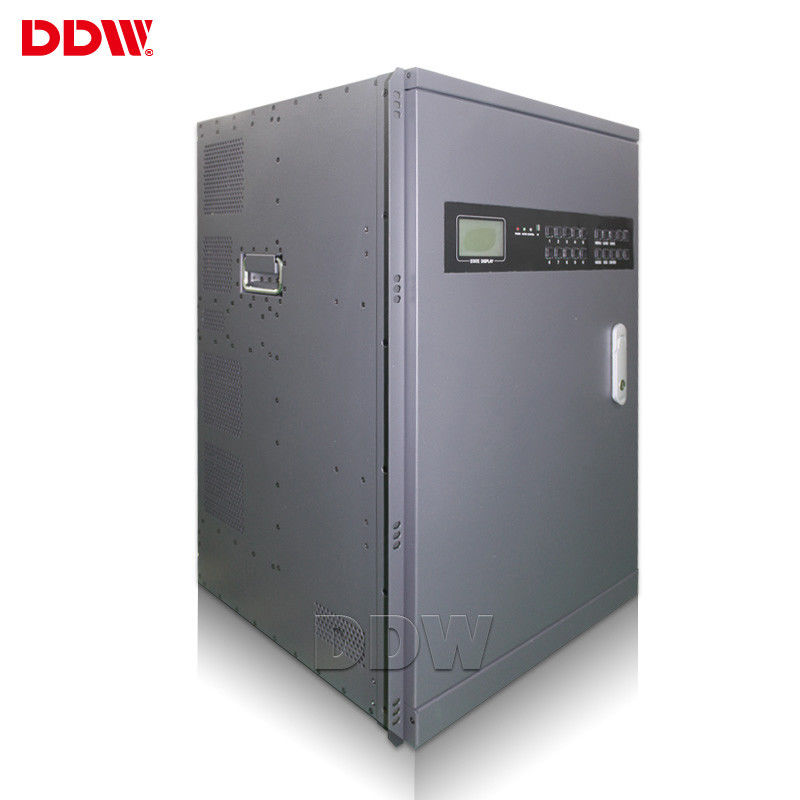

Large Image :  165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VM1212

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Video Wall Matrix Output Resolution: 1920*1080
Roam,zoom,PIP: Support Max PIP Per Screen: 1,4,16,customization
Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
Control Method: RS232,IP Input Bandwidth: 165MHZ

Video Wall Matrix For DIV HDMI VGA RJ45 Multi-Signal Input Formats


Video Wall Matrix Performance:
1, Response time is less than 6ms, which is prompt
2, Embedded 3D digital signal noise reduction, support 1920x1080 resolution.
3, Signal interface --- RS232, HDMI, DVI, VGA, YPbPr, AV
4, RS232 control, easy operation for the system by control software

5. Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 and multiple splicing player freely



DDW Video Wall Matrix key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200



DDW Video Wall Matrix Technical Specifications

Item No. Components Descriptions QTY/signal signal type
1 Video wall Matrix SwitcherDDW-VM1212 12HDMI input ,12HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board 24 HDMI
2 Software Installed in PC to control,OS windows 1
3 Accessories Power plug,IR Controller,English Manual 1
input card
interface 12*HDMI type a
signal protocal HDMI 1.3, HDCP 1.3, compatible DVI1..0
EDID support
input bandwidth 165MHZ
resolution HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
output card
interface 12*HDMI type a
signal protocal HDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth 165MHZ
output resolution

1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,
1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,
1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,
1024x768@60Hz,800x600@60Hz

switch effect seamless switching
System function
RS232 IN 1
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show one image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming NO
Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.


Technical specification of input/output connectors

VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female


165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats165MHZ Input Bandwidth 4 X 4 HDMI Matrix Video Wall DVI VGA RJ45 Multi Signal Input Formats
