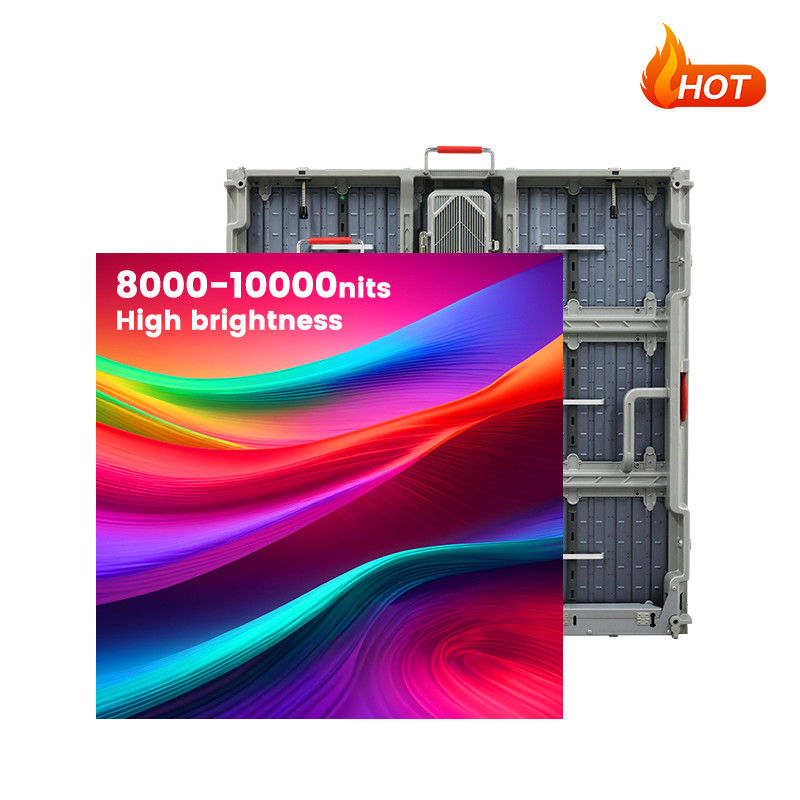

Name: Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays
Brand: Shenzhen DDW Technology Co., Ltd.
SKU: FAPRO Series
Availability: InStock

Home Products Outdoor LED Screen

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays

Product Details:

Place of Origin:	GuangDong
Brand Name:	DDW or OEM
Certification:	CE,ROSH,FCC,IOS9001
Model Number:	FAPRO Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Payment Terms:	L/C, D/A, Western Union, MoneyGram, D/P, T/T

Contact Now

Detailed Product Description

Pixels:	P5 P6.67 P8 P10	Module Size:	480x320mm
Cabinet Size:	960x960mm	Refresh Rate:	7680Hz
Brightness:	8000-10000nits（outdoor）	Cabinet Material:	Die-casting Aluminum

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 0

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 1

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 2

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 3

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 4

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 5

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 6

Commercial 960x960mm LED Outdoor Screen, P5 P6.67 P8 P10, IP68 Waterproof, 8000-10000nits for Public & Event Displays 7

Pixel Pitch	5mm	6.667mm	8mm	10mm
Packaging method	SMD 1921 Triple In - (Six Leg Lamp)
Brightness	8000cd/m2
Module resolution	96x64 Dots	72x48 Dots	60x40 Dots	48x32 Dots
Module size (WxH)	480mmx320mm
Pixel density	40000 pixels/m²	22500 pixels/m²	15625 pixels/m²	10000pixels/m²
Cabinet resolution	192x192Dots	144x144 Dots	120x120 Dots	96x96Dots
Cabinet size (WxHxD)	W960mmxH960mmxD100mm
Cabinet weight	27kg/m²
Maintenance method	Front and rear maintenance
Protection level	Front IP68 and rear IP66
Cabinet flatness	≤0.4mm
Module/box material	Aluminum/Die cast Aluminum
Module connection method	Hard connection design
Module signal connection point	Dual backup redundancy
Color temperature	Adjustable from 2000K to 15000K
Viewing angle	Horizontal>160 °, vertical>110 °
Physical contrast (black/white)	8:01	10:1	15:1	24:1
Reflective coefficient (white ratio)	12%	9%	6%	4%
Maximum power	700W/m²	650W/m²	660W/m²	590W/m²
Average power	70-180W/m²	70-180W/m²	70-180W/m²	70-180W/m²
Power parameters	AC 100~240V/low voltage power supply
Grayscale	16bit
Refresh rate	7680Hz
Frame frequency	50/60 Hz
Operating temperature/humidity range	-20℃~+60℃/10~90%RH
