Name: Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material
Brand: Shenzhen DDW Technology Co., Ltd.
SKU: A Series
Price: Negotiable USD
Availability: InStock

Home Products Stage Rental LED Display

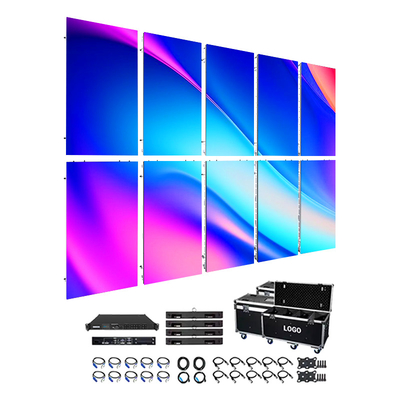

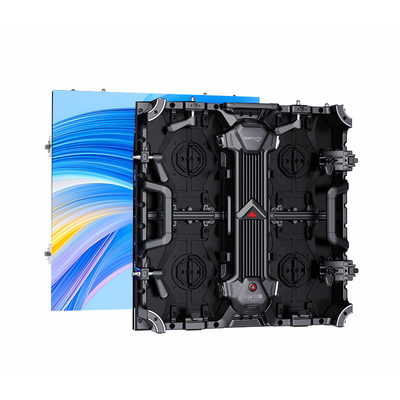

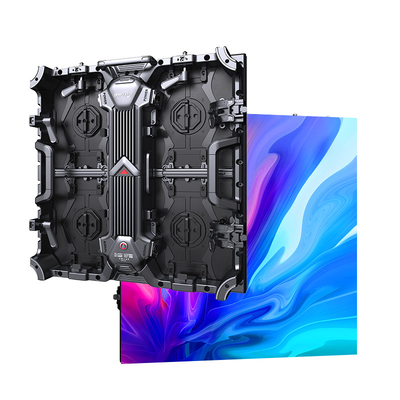

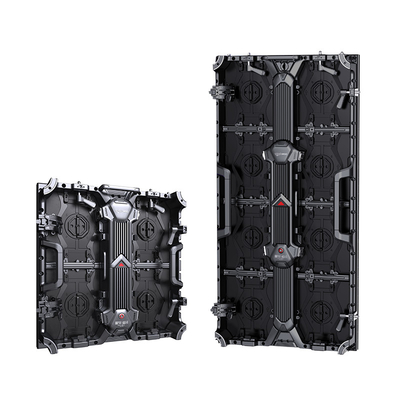

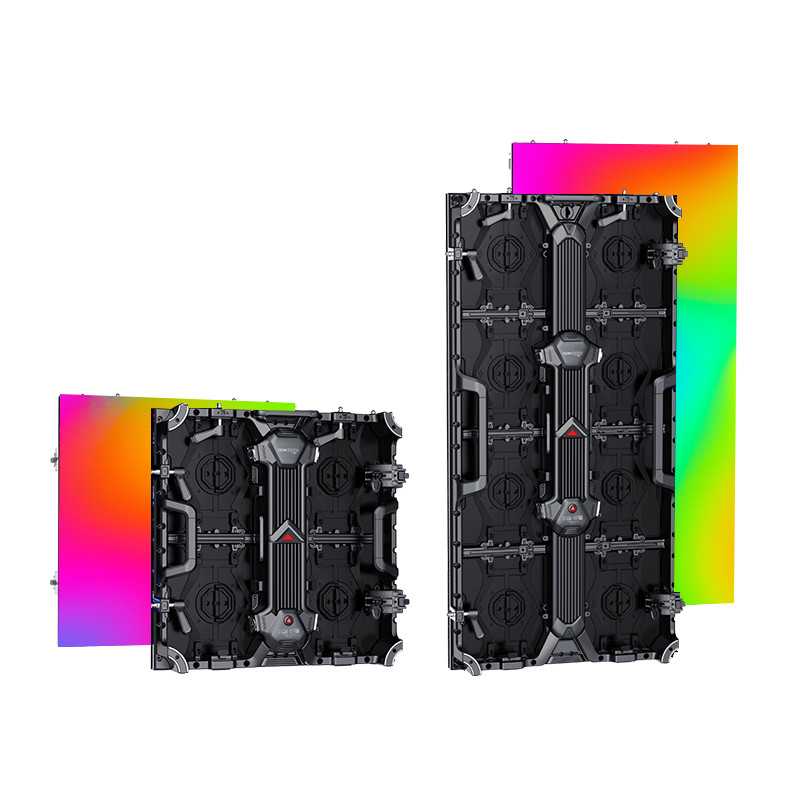

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material

Product Details:

Place of Origin:	GuangDong
Brand Name:	DDWDISPLAY
Certification:	CE,ROSH,FCC,IOS9001
Model Number:	A Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Payment Terms:	L/C, D/A, Western Union, MoneyGram, D/P, T/T

Contact Now

Detailed Product Description

Pixels:	P1.95/P2.6/P2.97/P3.91/P4.81	Module Size:	250*250mm
Refresh Rate:	3840Hz	Brightness:	600-800nits(indoor) 4000-5000nits（outdoor）
Cabinet Material:	Die-casting Aluminum	Arc Angle:	-10°、 -7.5° 、-5°、 -2.5°、 0°、 2.5° 、5° 、7.5°、 10°

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 0

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 1

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 2

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 3

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 4

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 5

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 6

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 7

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 8

Stage Rental LED Display with 500*500 Panel Dimension and Die-casting Aluminum Cabinet Material 9

Specifications
Pixel pitch (mm)	P2.604(indoor)	P2.976(indoor)	P3.91(indoor)	P2.976(outdoor)	P3.91(outdoor)
Lamp model	SMD1515	SMD2020	SMD2020	SMD1415	SMD2020
Module pixel resolution(dots)	192*192	168*168	128*128	192*192	128*128
Module size(mm)	250*250	250*250	250*250	250*250	250*250
Pixel density (dots/m²)	147474	112896	65410	147474	65410
Brightness(nits)	700	700	700	4200	4200
white color temperature(°)	6000~10000	6000~10000	6000~10000	6000~10000	6000~10000
Viewing angle(°)	H:160V:140	H:160V:140	H:160V:140	H:160V:140	H:160V:140
Panel dimention	500*500	500*500	500*500	500*500	500*500
Cabinet material	Die-casing aluminum	Die-casing aluminum	Die-casing aluminum	Die-casing aluminum	Die-casing aluminum
Panel weight	7.5KG	7.5KG	7.5KG	7.5KG	7.5KG
Grey scale	14Bit	14Bit	14Bit	14Bit	14Bit
Frame frequency	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz
refresh rate(Hz)	3840	3840	3840	3840	3840
Driving method	1/32s	1/28s	1/16s	1/21s	1/16s
Working Voldtage(V)	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Input Power(Hz)	50/60	50/60	50/60	50/60	50/60
Max Power consumption/panel(w)	480	480	480	480	480
Power consumption/panek(w)	160	160	160	160	160
Lifespan(H)	100000	100000	100000	100000	100000
IP Level	IP31	IP31	IP31	IP65	IP65
Life span	≥100,000H
