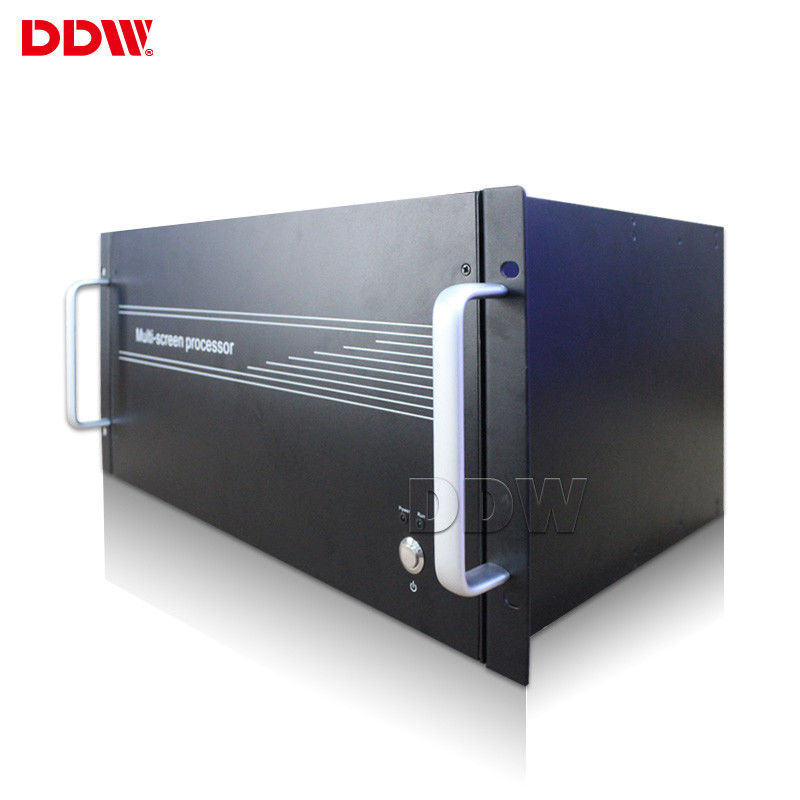

Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition

Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition

    • Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition
    • Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition
    • Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition
  • Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VM4848

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Input/output: 48X48 Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Control Method: RS232,LAN Product Name: Video Wall Matrix
    Working Temperature: -20°C——60°C Input Bandwidth: 165MHZ
    High Light:

    video wall multiplexer

    ,

    multi screen video controller

    Multi Signal Hdmi 4K Video Wall Matrix Software Hdmi DDW-VM4848 1920*1080



    Video Wall Matrix​ key features:

    •  With special virtual display technology, full channel real HD 1080P signal processing;
    •  Signal Preview function available;
    •  Supporting PC, Android APK, iOS APP control software;
    •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
    •  Scaling and positioning, size is scalable and position adjustable;
    •  With background logo display function. It can be customized;
    •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

    Pure hardware architecture board any combination:

    •  Industrial chassis with CPCI structure;
    •  Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
    •  Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;

    Multi – group video wall management:

    •  It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
    •  Setting different resolutions, adjust colors and other parameters.


    DDW Video Wall Matrix Technical Specifications

    Item No.ComponentsDescriptionsQTY/signalsignal type
    1Video wall Matrix SwitcherDDW-VM484848HDMI input ,48HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board96HDMI
    2SoftwareInstalled in PC to control,OS windows1
    3AccessoriesPower plug,IR Controller,English Manual1
    input card
    interface48*HDMI type a
    signal protocalHDMI 1.3, HDCP 1.3, compatible DVI1..0
    EDIDsupport
    input bandwidth165MHZ
    resolutionHDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
    output card
    interface48*HDMI type a
    signal protocalHDMI 1.3, VGA 1.0, compatible DVI1..0
    output bandwidth165MHZ
    output resolution

    1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,
    1600x1200@60Hz,1600x900@60Hz,1440x900@60Hz,
    1400x1050@60Hz,1366x768@60Hz,1280x1024@60Hz,
    1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,
    1024x768@60Hz,800x600@60Hz

    switch effectseamless switching
    System function
    RS232 IN1
    IR IN1
    AC INAC100-240V
    Color System SupportPAL/NTSC/SECAM
    Control TypeIR Remote &Software Control
    Menu LanguageEnglish/Chinese(Multiple Language can be customized)
    Vertical/Horizontal DisplaySupport
    Combine DisplaySupport combine any horizental &vertical numbers of screens and show display
    Support combine all screens together to show one image
    Solid DisplaySupport each screen input with separate signal
    PIP/Zoom/RoamingNO
    Multiple InterfacesSupport DVI,HDMI,VGA,AV &multiple signal inputs
    Rich ResolutionSupport 1080P,1080I,720P,480P &multiple resolution inputs
    Payment Terms &Conditions
    Warranty: 3years warranty,extra fee will be charged for additional years warranty.


    Technical specification of input/output connectors

    VGA/RGB inputInput: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video inputInput connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI outputResolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    SignalsConnectorsType
    Composite VIDEO inputBNCfemale
    VGA input15 pin HD D-Subfemale
    VGA output15 pin HD D-Subfemale
    DVI output24+5 or 24+1 standardfemale
    AUX RS-2329-pin D-Subfemale
    Main RS-2329-pin D-Subfemale


    Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition 0Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition 1Multi Signal Hdmi 4K Video Wall Matrix Software HDMI 1920*1080 For Exhibition 2
