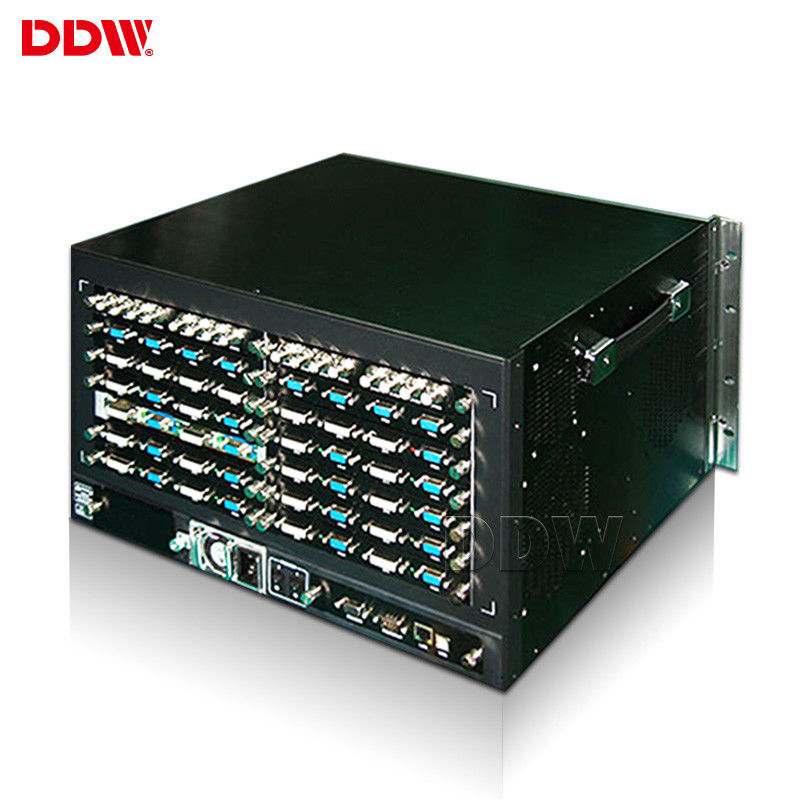

High Resolution Display VGA Video Wall Matrix With Software 1080P Multi Signal Sources 32bit Color

High Resolution Display VGA Video Wall Matrix With Software 1080P Multi Signal Sources 32bit Color

    • High Resolution Display VGA Video Wall Matrix With Software 1080P Multi Signal Sources 32bit Color
    • High Resolution Display VGA Video Wall Matrix With Software 1080P Multi Signal Sources 32bit Color
    • High Resolution Display VGA Video Wall Matrix With Software 1080P Multi Signal Sources 32bit Color
  • High Resolution Display VGA Video Wall Matrix With Software 1080P Multi Signal Sources 32bit Color

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VM1010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Input/output Numbers: 10x10 Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Roam,zoom,PIP: Support
    Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP Control Method: RS232,LAN
    Product Name: VGA Videowall Matrix Input Resolution: 1024x768~1080p

    High Resolution Display Video Wall Matrix With Software1080P Multi Signal Sources




    Video Wall Matrix key features:

    •  With special virtual display technology, full channel real HD 1080P signal processing;
    •  Signal Preview function available;
    •  Supporting PC, Android APK, iOS APP control software;
    •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
    •  Scaling and positioning, size is scalable and position adjustable;
    •  With background logo display function. It can be customized;
    •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

    Multi – group video wall management:

    • It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
    • Setting different resolutions, adjust colors and other parameters.

    Support PC, mobile control software pre-monitoring display

    •  Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
    •  The operating signal source can be selected more intuitively as needed;
    •  On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;


    DDW Video Wall Matrix Technical Specifications

    Item No.ComponentsDescriptionsQTY/signalsignal type
    1Video wall Matrix SwitcherDDW-VM101010HDMI input ,10HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board20HDMI
    2SoftwareInstalled in PC to control,OS windows1
    3AccessoriesPower plug,IR Controller,English Manual1
    input card
    interface10*HDMI type a
    signal protocalHDMI 1.3, HDCP 1.3, compatible DVI1..0
    EDIDsupport
    input bandwidth165MHZ
    resolutionHDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
    output card
    interface10*HDMI type a
    signal protocalHDMI 1.3, VGA 1.0, compatible DVI1..0
    output bandwidth165MHZ
    output resolution

    1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,
    1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,
    1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,
    1024x768@60Hz,800x600@60Hz

    switch effectseamless switching
    System function
    RS232 IN1
    IR IN1
    AC INAC100-240V
    Color System SupportPAL/NTSC/SECAM
    Control TypeIR Remote &Software Control
    Menu LanguageEnglish/Chinese(Multiple Language can be customized)
    Vertical/Horizontal DisplaySupport
    Combine DisplaySupport combine any horizental &vertical numbers of screens and show display
    Support combine all screens together to show one image
    Solid DisplaySupport each screen input with separate signal
    PIP/Zoom/RoamingNO
    Multiple InterfacesSupport DVI,HDMI,VGA,AV &multiple signal inputs
    Rich ResolutionSupport 1080P,1080I,720P,480P &multiple resolution inputs
    Payment Terms &Conditions
    Warranty: 3years warranty,extra fee will be charged for additional years warranty.


    Technical specification of input/output connectors

    VGA/RGB inputInput: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video inputInput connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI outputResolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    SignalsConnectorsType
    Composite VIDEO inputBNCfemale
    VGA input15 pin HD D-Subfemale
    VGA output15 pin HD D-Subfemale
    DVI output24+5 or 24+1 standardfemale
    AUX RS-2329-pin D-Subfemale
    Main RS-2329-pin D-Subfemale
