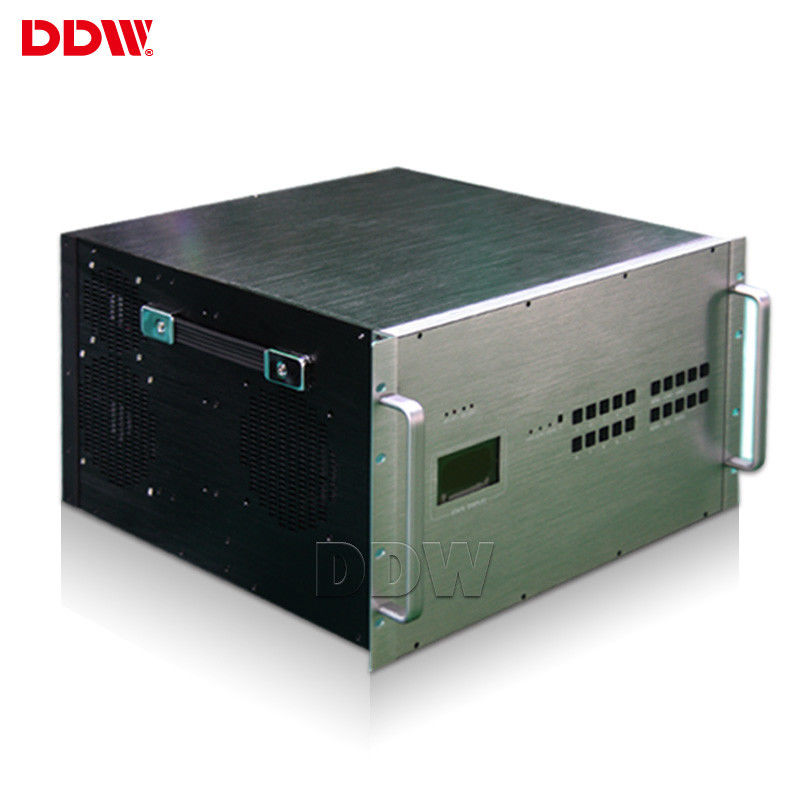

Name: Dual Link DVI Input 4k Video Wall Matrix Controller 6 Maximum Output Numbers
Brand: Shenzhen DDW Technology Co., Ltd.
SKU: DDW-VM0606
Availability: InStock

Home Products Video Wall Matrix

Dual Link DVI Input 4k Video Wall Matrix Controller 6 Maximum Output Numbers

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 ,CE , RoHS , FCC , 3C
Model Number:	DDW-VM0606

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	Negotiable
Packaging Details:	Double layer carton pack
Delivery Time:	3working days upon payment
Payment Terms:	T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Input/output Numbers:	6x6	Output Resolution:	1920*1080
Pin Configuration:	2=TX,3=RX,5=GND	Color Quality:	32bit
Product Name:	Video Wall Matrix	Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN	Input Bandwidth:	165MHZ
Highlight:	video wall multiplexer , multi screen video controller

Dual Link DVI Input 4k Video Wall Matrix Controller 6 Maximum Output Numbers

Video Wall Matrix Key Features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Flexibility to increase the input/output board
5. Support partial input and output cards with mixed interpolation
6. Input/output card supports hot-swappable, plug-and-play functionality
7. Output resolution up to 1920 x 1200
8. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
9. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
10. Redundant power supply design, thermostatically controlled fan
11. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments.

Simplified installation & disassembly

Flexible modular design, Input and output card board;
Support input of a variety of interfaces and signal source;
Matching features, pre-monitoring;
Echo function, input and output characters display with superimposed;

Video Wall Matrix Parameters

Vertical/Horizontal Display	Support
Combine Display	Support combine any horizontal &vertical numbers of screens and show display
Combine Display	Support combine all screens together to show 1image
Solid Display	Support each screen input with separate signal
PIP/Zoom/Roaming	Support open one window for each screen, each window can be zoomed &roaming internal freely
iPad/iPhone remote control	Support customized APP remote control
Signal preview function	Support Audit/Preview signal before output to windows/video wall screens
Scene management	Support Multiple scenes management/recall function
Support scenes cycle broadcast	Support scenes cycle broadcast function
Multiple Interfaces	Support multiple DVI,HDMI,VGA,AV inputss &multiple signal outputs
Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolution inputs
Standard Packing	Double layer carton box pack
Weight	5-100kg
Weight	6kg-110kg

Video Wall Matrix Detail Parameters:

Item No.	Components	Descriptions	QTY/signal	signal type
1	Video wall Matrix SwitcherDDW-VM0606	6HDMI input ,6HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	12	HDMI
2	Software	Installed in PC to control,OS windows	1
3	Accessories	Power plug,IR Controller,English Manual	1
input card
interface		6*HDMI type a
signal protocal		HDMI 1.3, HDCP 1.3, compatible DVI1..0
EDID		support
input bandwidth		165MHZ
resolution		HDTV 19201080@60HZ, HDCP 19201200@60HZ
output card
interface		6*HDMI type a
signal protocal		HDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth		165MHZ
output resolution		1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, 1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz, 1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz, 1024x768@60Hz,800x600@60Hz
switch effect		seamless switching
System function
RS232 IN		1
IR IN		1
AC IN		AC100-240V
Color System Support		PAL/NTSC/SECAM
Control Type		IR Remote &Software Control
Menu Language		English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display		Support
Combine Display		Support combine any horizental &vertical numbers of screens and show display
		Support combine all screens together to show one image
Solid Display		Support each screen input with separate signal
PIP/Zoom/Roaming		NO
Multiple Interfaces		Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution		Support 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.
