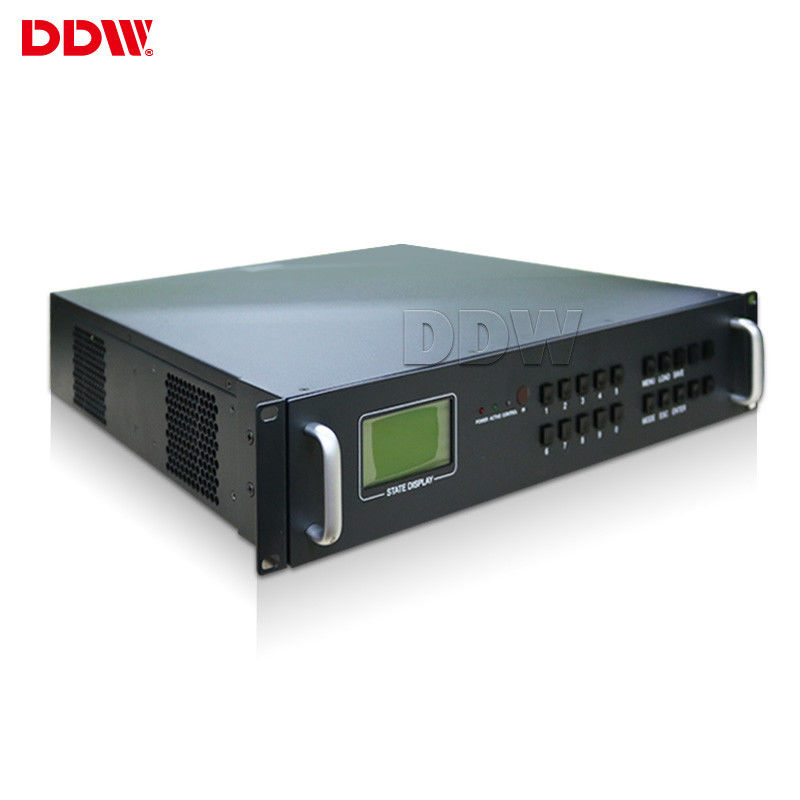

Customized Video Wall Multiplexer For Meeting Room Special Control Software

Customized Video Wall Multiplexer For Meeting Room Special Control Software

    • Customized Video Wall Multiplexer For Meeting Room Special Control Software
    • Customized Video Wall Multiplexer For Meeting Room Special Control Software
    • Customized Video Wall Multiplexer For Meeting Room Special Control Software
  • Customized Video Wall Multiplexer For Meeting Room Special Control Software

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VPH1212

    Payment & Shipping Terms:

    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Video Wall Scaler Output Resolution: 1920*1080
    Roam,zoom,PIP: Support Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Control Method: RS232,IP Working Humidity: 5-95%
    High Light:

    hdmi seamless matrix switcher

    ,

    video scaler switcher

    Customized Video Wall Scaler For Meeting Room Special Control Software DDW-VPH1212



    Video Wall Scaler​ Performance:
    1, Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 and multiple splicing player freely
    2, Embedded 3D digital signal noise reduction, support 1920x1080 resolution.
    3, Signal interface --- RS232, HDMI, DVI, VGA, YPbPr, AV
    4, RS232 control, easy operation for the system by control software



    Pure hardware architecture board any combination:
    Industrial chassis with CPCI structure;
    Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
    Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;

    Multi – group video wall management:
    It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
    Setting different resolutions, adjust colors and other parameters.
    Support PC, mobile control software pre-monitoring display
    Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
    The operating signal source can be selected more intuitively as needed;

    Video and Image Processing :
    1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
    2. Inputs/windows can be resized, layered and positioned across screen boundaries
    3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
    4. Input sources can be cropped to remove the edge pixels and lines
    5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured


    DDW Video Wall Scaler Technical Specifications

    Model series With CBD Function No CBD
    Function description

    4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

    sigal at the same time to the system,require screen built in daisy chain board

    ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
    VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
    HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
    YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
    SDI(customizable) BNC Port ~
    AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
    Input resolution up to 4K,commonly used resolutions
    Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
    HDMI, DVI, 4K-DVI HDMI, DVI output ~
    3G SDI(customzable) BNC Port loop out ~
    AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
    Output resolution up to 4K,commonly used resolutions
    Control Standard RS232 port
    IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs



    Hareware video wall controller U Chassis Specs

    Chassis U size Controller Dims(mm)
    L*W*H
    Pack dims(mm)
    L*W*H
    N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
    2U 406×440×102 590×530×190 11.25 12.25 8 8 200
    3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
    7U 442×402×320 590×530×460 29.5 31.50 32 32 400
    12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
    23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300


    Customized Video Wall Multiplexer For Meeting Room Special Control Software 0Customized Video Wall Multiplexer For Meeting Room Special Control Software 1Customized Video Wall Multiplexer For Meeting Room Special Control Software 2
