    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW490DUN-THC1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Bezel Width: 3.5 Mm Surface: Anti-glare
    Brightness: 500 Nits Product Name: Curved Video Wall
    Panel Brand: LG Panel Width: 1077.6 Mm
    Panel Height: 607.8 Mm Cooling: Low Noise Fans
    High Light:

    curved wall display

    ,

    curved lcd video wall

    LG Panel Curved Video Wall 500 nits 0.5595x0.5595 mm Dot Pitch LW490DUN-THC1





    49 inch Curved Video Wall Key features

    •  Original DDW commercial grade lcd video wall panel  , 16:9 INNOLUX a-Si TFT-LCD
    •  500nits brightness , 4000:1 contrast
    •  1080P UHD physical resolution 1920*1080
    •  Only 3.5 mm narrow bezel , high quality , practical , good vision effect
    •  UHD video wall unit , high brightness, high contrast, high gamut
    •  Flexible structure design , easy installation , extensible , arbitrary combination

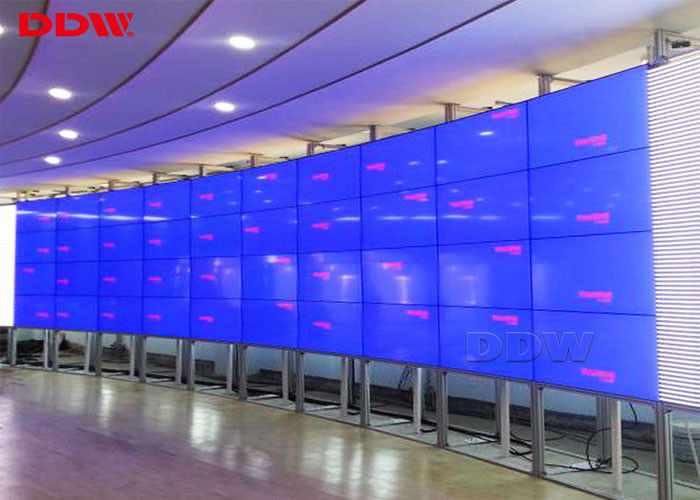

    Curved Video Wall ​Applications

    This 49 inch 3.5mm narrow bezel video wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



    Curved Video Wall basic informations:

    •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  The installation method: front push hydraulic pop out;
    •  Dot Pitch: 0.5593 mm x 0.5593 mm; Contrast ratio: 4000:1; Responsive time: 6ms;
    •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
    •  7x24x365 keep working;



    Curved Video Wall Specifications

    Model No: DDW-LW490DUN-THC1
    Active Screen Diagonal 49"
    TotalBezel Width 3.5 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 500 cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Panel Dimension(WxHxD)

    1077.6x607.8x55.6mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Curved Video Wall Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
