Full Channel Video Wall Hdmi Controller / Android IOS Wall Display Controller

China Full Channel Video Wall Hdmi Controller / Android IOS Wall Display Controller supplier

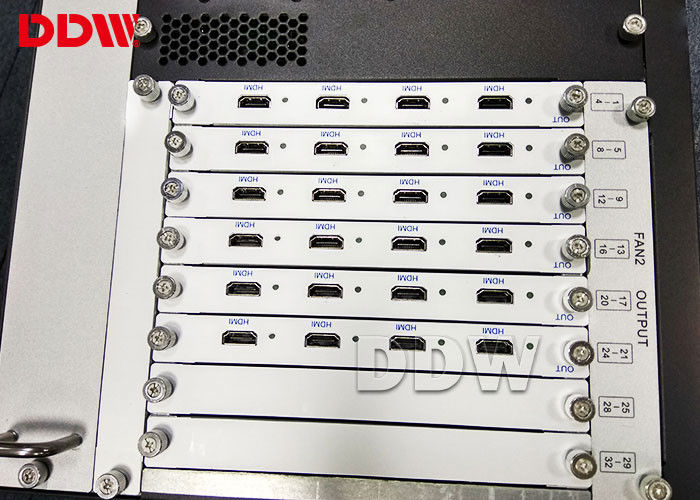

Large Image :  Full Channel Video Wall Hdmi Controller / Android IOS Wall Display Controller

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH0909

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Video Wall Hdmi Controller Channel: Full Channel
Max PIP Per Screen: 1,4,16,customization Color Quality: 32bit
Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP Control: Android IOS
Working Time: 365x7x24hrs Consumption: 12W/channel

Full Channel Video Wall Hdmi Controller / Android IOS Wall Display Controller


Video and Image Processing :


1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured



Video Wall Hdmi Controller key features:

  •  Supporting PC, Android APK, iOS APP control software;
  •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
  •  Scaling and positioning, size is scalable and position adjustable;
  •  With background logo display function. It can be customized;

Video Wall Hdmi Controller Specifications



Model series With CBD Function No CBD
Function description

4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs



Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
2U 406×440×102 590×530×190 11.25 12.25 8 8 200
3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
