LCD Multi Tv Display Controller , 4k Video Display Wall Controller

China LCD Multi Tv Display Controller , 4k Video Display Wall Controller supplier

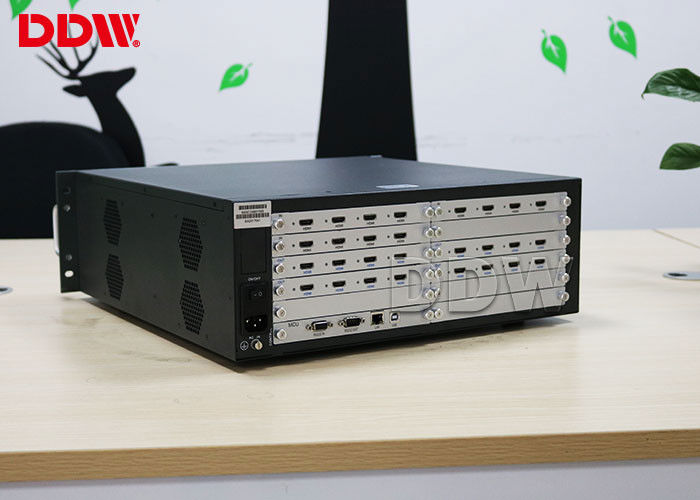

Large Image :  LCD Multi Tv Display Controller , 4k Video Display Wall Controller

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1616

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Multi Tv Display Controller Input/output Numbers: 16x16
Resolution: 4k Color Quality: 32bit
Other Name: Video Display Wall Controller Control Method: RS232,LAN
Working Temperature: -20°C——60°C Baud Rate: 115200

LCD Multi Tv Display Controller , 4k Video Display Wall Controller

Pure hardware architecture board any combination:

  •  Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
  •  Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;

Multi – group video wall management:

  •  It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
  •  Setting different resolutions, adjust colors and other parameters.

Multi Tv Display Controller Specifications



Model series With CBD Function No CBD
Function description

4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs



Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
2U 406×440×102 590×530×190 11.25 12.25 8 8 200
3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300


LCD Multi Tv Display Controller , 4k Video Display Wall ControllerLCD Multi Tv Display Controller , 4k Video Display Wall ControllerLCD Multi Tv Display Controller , 4k Video Display Wall Controller
