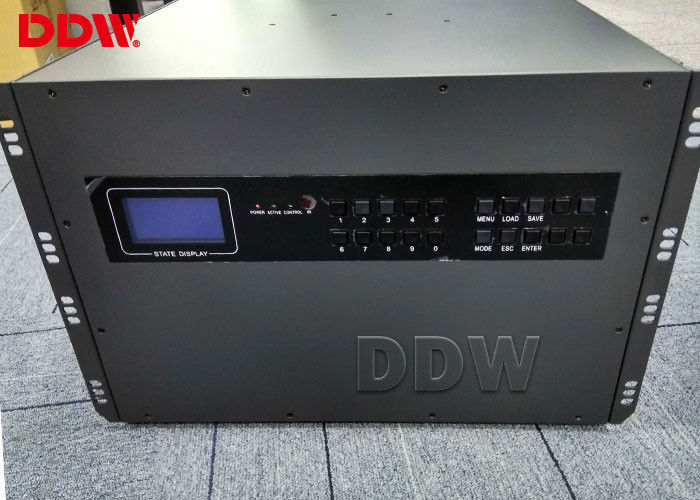

Real Time Image PC Video Wall Controller 6x6 Input Output Card Board

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 ,CE , RoHS , FCC , 3C
Model Number:	DDW-VPH0606

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	Negotiable
Packaging Details:	Double layer carton pack
Delivery Time:	3working days upon payment
Payment Terms:	T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Product Name:	Video Wall Controller 6x6	Input/output Numbers:	6x6
Input Output:	Card Board	Feature:	Real Time Image
Color Quality:	32bit	Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN	Baud Rate:	115200
High Light:	multi screen controller , vga video wall processor

Real Time Image PC Video Wall Controller 6x6 Input Output Card Board

Video Wall Controller 6x6 Features:

1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Flexibility to increase the input/output board
5. Support partial input and output cards with mixed interpolation
6. Input/output card supports hot-swappable, plug-and-play functionality
7. Output resolution up to 1920 x 1200
8. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet

Video Wall Controller 6x6 Simplified installation & disassembly

Flexible modular design, Input and output card board;
Support input of a variety of interfaces and signal source;
Echo function, input and output characters display with superimposed;

Video Wall Controller 6x6 Technical Specifications

Model series	With CBD	Function	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	~	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	CVBS	Support PAL/NTSC format, multiple BNC ports	~
	VGA/RGBHV	Multi-channel VGA DB-15 ports, support VGA full-format input	~
	HDMI, DVI, 4K-DVI, IP	Support 4K(3840x2160) input, each IP decode 4 channels	~
	YPbPr, YCbCr(customizable)	The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV	~
	SDI(customizable)	BNC Port	~
	AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized;	~	~
Input resolution	up to 4K,commonly used resolutions
Output signal format	VGA, RGBHV	signal channel XGA(1024x768@60Hz)/DB-15 port	~
	HDMI, DVI, 4K-DVI	HDMI, DVI output	~
	3G SDI(customzable)	BNC Port loop out	~
	AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized;	~	~
Output resolution	up to 4K,commonly used resolutions
Control	Standard RS232 port
	IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200

Hareware video wall controller U Chassis Specs

Chassis U size	Controller Dims(mm) LWH	Pack dims(mm) LWH	N.W(kg)	G.W(kg)	Max input Nos.	Max output Nos.	Max Power Consumption(Watts)
2U	406×440×102	590×530×190	11.25	12.25	8	8	200
3.5U	450x440x170	620x620x270	18.25	19.25	16	16	320
7U	442×402×320	590×530×460	29.5	31.50	32	32	400
12.5U	446×440×553	625×580×725	37.85	39.85	71	68	750
