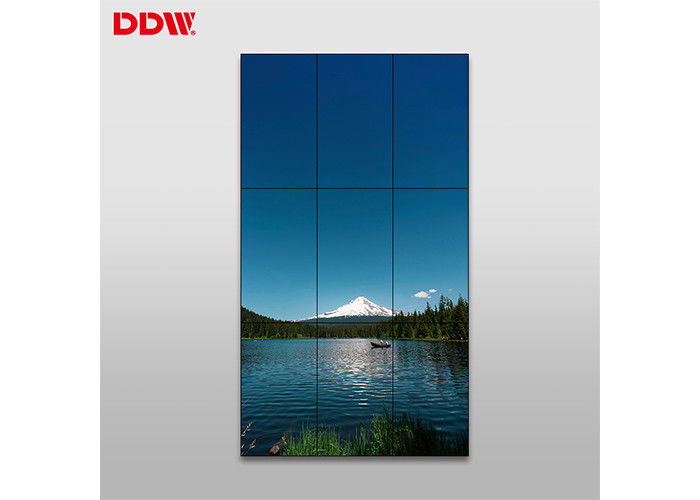

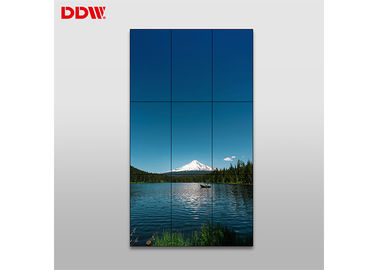

Advertising Multi Screen Video Wall , Frameless LCD Display Low Noise Fans

Advertising Multi Screen Video Wall , Frameless LCD Display Low Noise Fans

    • Advertising Multi Screen Video Wall , Frameless LCD Display Low Noise Fans
  • Advertising Multi Screen Video Wall , Frameless LCD Display Low Noise Fans

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-DV55FHM-NS0

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Panel Size: 55 Inch Bezel Width: 5.3 Mm
    Product Name: Multi Screen Video Wall White Point: 10,000 K
    Refresh Rate: 60Hz Surface: Anti-glare
    Active Area: 1073.8 × 604 Mm Dot: 0.5593x0.5593mm
    High Light:

    ultra narrow bezel video wall

    ,

    video wall lcd screens

    Advertising Multi Screen Video Wall , Frameless LCD Display Low Noise Fans



    LCD Video Wall Display​ ​Introduction



    Multi Screen Video Wall is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.





    LCD Video Wall Display Application areas:



    1. real estate sale center
    2. clothing store
    3. ticketing center
    4. hotel lobby
    5. mobile phone shop
    6. restaurant

    Multi Screen Video Wall features:



    1. Support a variety of signal ports.

    2. Built-in splicing module,support splice function

    3. Unique DNX motion supplement image processing technology,

    4. Dynamic image without motion trail

    5. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    6. Input by remote control with wire, mobile receiver head.



    Multi Screen Video Wall Specifications:



    Model No: DDW-DV55FHM-NS0 Multi Screen Video Wall
    Active Screen Diagonal 55 Inch
    Bezel Width Total: 5.3 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 500 cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH)

    0.5593x0.5593 mm

    Active Display Area(WxH)

    1073.8 × 604 mm

    Panel Dimension(WxHxD)

    1077.6 x 607.8 x 55.7 mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Multi Screen Video Wall​ Board Specifications



    Support PC Color 24bit
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Advertising Multi Screen Video Wall , Frameless LCD Display Low Noise Fans 0
