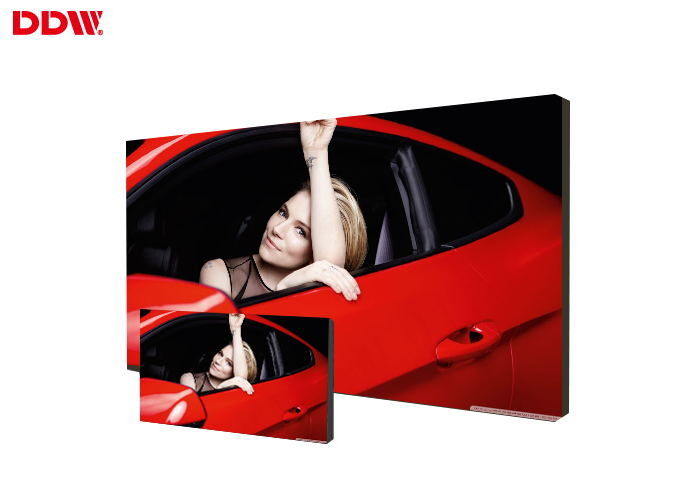

46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design

46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design

    • 46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design
  • 46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN-THA3

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: LCD Video Wall Display Bezel Width: 1.8 Mm
    Backlight: LED Size: 46″, 49″, 55″, 60″
    Aspect Ratio: 16:9 Working Humidity: 0.85
    Cooling: Low Noise Fans Contrast: MEGA DCR
    High Light:

    ultra narrow bezel video wall

    ,

    multi screen video wall

    46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design




    LCD Video Wall Display Introduction :

    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  The installation method: floor standing cabinets;
    •  Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
    •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
    •  7x24x365 keep working;

    LCD Video Wall Display features:

    •  Panel size: 46″, 49″, 55″, 60″; Optional.
    •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
    •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
    •  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
    •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
    •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
    •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;

    LCD Video Wall Display Specifications:



    Model No: DDW-LW550DUN-THA3 LCD Video Wall Display
    LCD Technology LG IPS LCD
    Active Screen Diagonal 55''
    Total Bezel Width 1.8 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 700 cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6×680.4mm

    Panel Dimension(WxHxD)

    1211.4x682.2x53.3 mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Display Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design 0

    46″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design 146″, 49″, 55″, 60″ LCD Video Wall Display Ultra Narrow Frame Design 2
