Modular Design LCD Video Wall Display For CCTV Control Room Conference

China Modular Design LCD Video Wall Display For CCTV Control Room Conference supplier

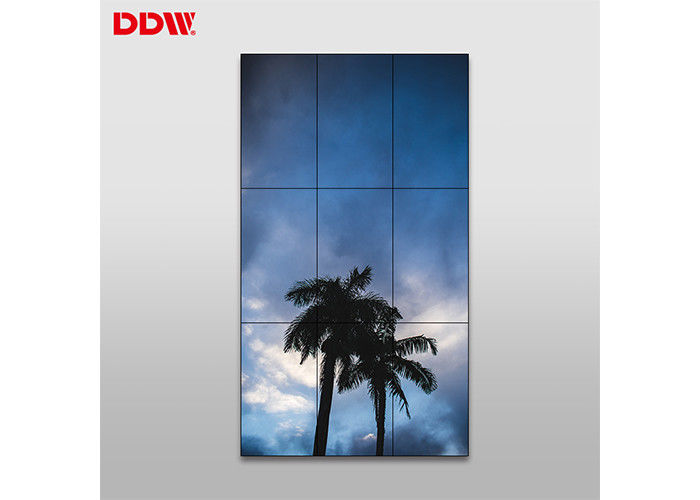

Large Image :  Modular Design LCD Video Wall Display For CCTV Control Room Conference

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THA3

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Name: LCD Video Wall Display Application: CCTV Control Room Conference
Design: Modular Design Color: 8Bit , 16M
Aspect Ratio: 16:9 Working Humidity: 0.85
Cooling: Low Noise Fans Active Area: 1209.6×680.4mm

Modular Design LCD Video Wall Display For CCTV Control Room Conference



LCD Video Wall Display​ basic informations:

  •  With original LG panel, has a stylish design, lighter weight, easy to handle and install;
  •  Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

LCD Video Wall Display​ key features:

  •  Ultra narrow frame design, the narrowest bezel is 1.8mm and the bezel can be optional.
  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker

LCD Video Wall Display Specifications:



Model No: DDW-LW550DUN-THA3 LCD Video Wall Display
LCD Technology LG Panel
Active Screen Diagonal 55''
Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)

1209.6×680.4mm

Panel Dimension(WxHxD)

1211.4x682.2x53.3 mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours



LCD Video Wall Display​ Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



LCD Video Wall Display Details

Modular Design LCD Video Wall Display For CCTV Control Room Conference
