5.3 Mm Bezel Video Wall Advertising / 55 Video Wall Display Low Noise Fans

China 5.3 Mm Bezel Video Wall Advertising / 55 Video Wall Display Low Noise Fans supplier

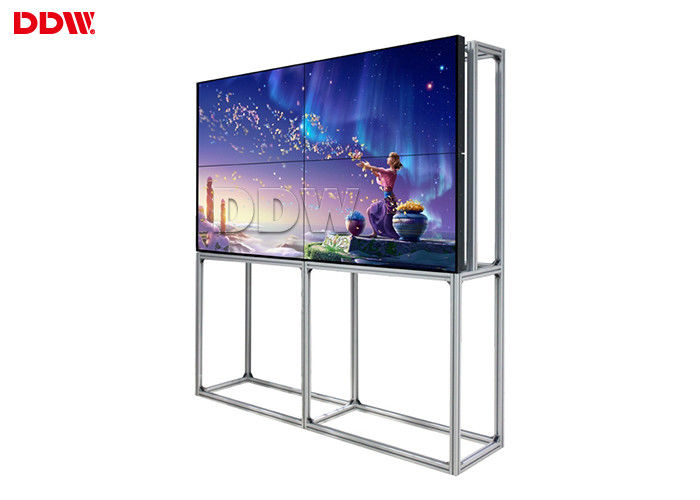

Large Image :  5.3 Mm Bezel Video Wall Advertising / 55 Video Wall Display Low Noise Fans

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV55FHM-NS0

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 55 Inch Bezel Width: 5.3 Mm
Product Name: Video Wall Advertising White Point: 10,000 K
Refresh Rate: 60Hz Surface: Anti-glare
Life: >60,000(hrs) Cooling: Low Noise Fans

5.3 Mm Bezel Video Wall Advertising / 55 Video Wall Display Low Noise Fans





Video Wall Advertising key features:

  • Panel size: 46″, 49″, 55″, 60″, 65″ optional;
  • Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
  • Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  • The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  • Interfaces: 2xHDMI,DP loop, DVI , VGA ,CVBS ,USB , Switch, Power port;
  • Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  • Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  • Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;



Video Wall AdvertisingSpecifications:



Model No: DDW-DV55FHM-NS0 Video Wall Advertising
Active Screen Diagonal 55''
Bezel Width Total: 5.3 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.5593x0.5593 mm

Active Display Area(WxH)

1073.8 × 604 mm

Panel Dimension(WxHxD)

1077.6x607.8x55.7mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Video Wall Advertising Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
