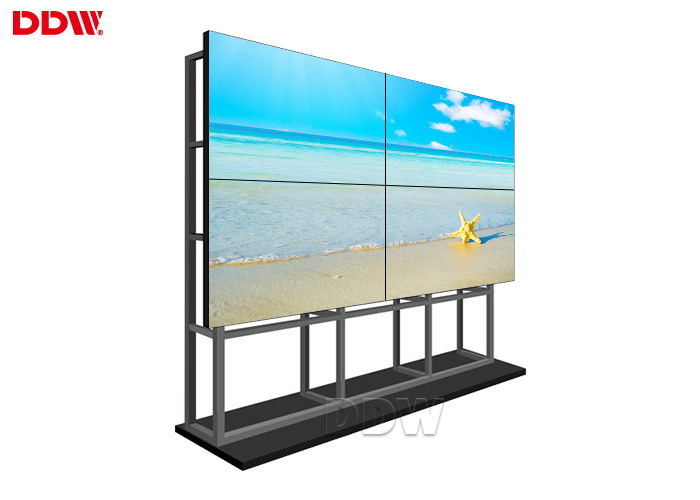

Custom Made Commercial Video Wall For Advertising Anti Glare Surface

Product Details:

Place of Origin:	Guangdong , China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-LW550DUN-TKB1

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	Negotiable
Packaging Details:	First layer carton pack with filling foam , then wood pallet pack
Delivery Time:	3 working days upon payment
Payment Terms:	T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Product Name:	Commercial Video Wall	Viewing Angle:	178x178
Bezel Width:	3.5mm	Surface:	Anti Glare Surface
Brightness:	500 Nits	Size:	Custom Made
Resolution:	1920*1080	Input Voltage:	AC 220v-250v
High Light:	multi display video wall , seamless lcd video wall

Custom Made Commercial Video Wall For Advertising Anti Glare Surface

Commercial Video Wall Introduction

1. Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2. Interface type: VGA, DVI and HD connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode

11. Excellent display

Commercial Video Wall main parameters

1. Original DDW commercial grade lcd video wall display panel

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,High gamut .

Commercial Video Wall Key features:

1. Support a variety of signal ports.

2. Built-in splicing module, support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

Commercial Video Wall Specifications:

Model No:	DDW-LW550DUN-TKB1
Active Screen Diagonal	55''
Total Bezel Width	3.5mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Pixel Pitch(WxH)	0.63x0.63 mm
Active Display Area(WxH)	1209.6 × 680.4 mm
Panel Dimension(WxHxD)	1213.4x684.2x38.9mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing
