5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall

China 5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall supplier
5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall supplier 5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall supplier 5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall supplier 5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall supplier

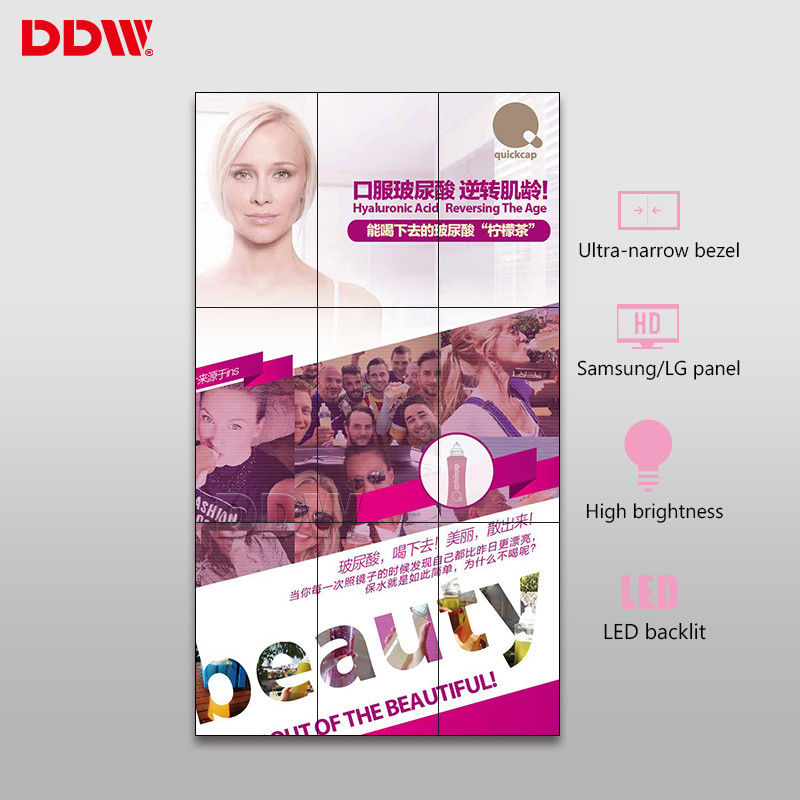

Large Image :  5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV55FHM-NS0

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 55 Inch Bezel Width: 5.3 Mm
Product Name: Commercial Video Wall White Point: 10,000 K
Refresh Rate: 60Hz Surface: Anti-glare
Life: >60,000(hrs) Cooling: Low Noise Fans

5.3 mm 1920*1080 Commercial Video Wall DV55FHM-NS0 500 nits LED Backlit





Commercial Video Wall ​Introduction

Advertising video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



55 inch Commercial Video Wall ​main parameters

1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

3. FHD physical resolution 1920x1080

4. Only 5.3 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. Flexible structure design ---easy installation ,extensible,arbitrary combination

7. Stable performance,suitable working for a long time



Commercial Video Wall ​Key features:

1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

8. Input by remote control with wire, mobile receiver head.



Specifications:

Model No: DDW-DV55FHM-NS0
Active Screen Diagonal 55''
Bezel Width Total: 5.3 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.5593x0.5593 mm

Active Display Area(WxH)

1073.8 × 604 mm

Panel Dimension(WxHxD)

1077.6x607.8x55.7mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Commercial Video Wall​ Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall5.3 Mm 1920*1080 Frameless Video Wall , 500 Nits LED Backlit 3x3 Video Wall
