| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN14 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Multi Screen Display Wall | Brand: | DDW |
|---|---|---|---|
| Panel Size: | 55 Inch | Max Resolution: | 1920x1080 |
| Color: | Rich Color | Response Time: | 5ms |
| Input Voltage: | AC 110-240V | Feature: | Large |
| High Light: | interactive video display,interactive wall display |
||

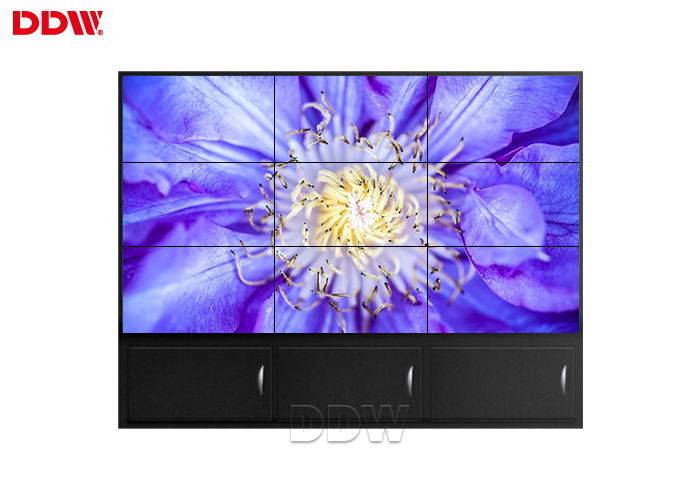

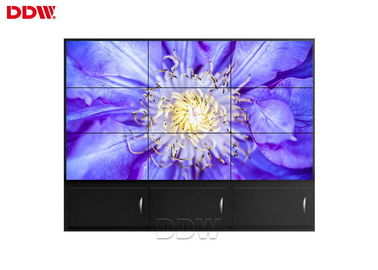

DDW Multi Screen Display Wall / Rich Color LCD Video Wall Display Screen
Multi Screen Display Wall features:
Built-in splicing module, Support splice function
Support creating one window PIP across the screen, roaming service, scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output.
Input by remote control with wire, mobile receiver head.
Multi Screen Display Wall Details
Input Voltage: AC 110-240V
Brightness: 700nits
Total bezel width: 1.7mm
Resolution: 1920*1080
Contrast: 4000:1
Surface: anti-glare
Video wall monitor power consummtion:250W
Multi Screen Display Wall Applications
Multi Screen Display Wall is widely used for CCTV control room Conference and meeting rooms , GYM center , Lobbies , Security Monitoring Center , Surveillance and Retail Center , Restaurant and hotel , Retail Shopping Mall Advertising and information Displays , Public Installations , Exhibition and show center , Live show , Rental and advertising Center , Museums , Church , Transportation and Mass Info Display systems.
Multi Screen Display Wall Specifications
| Active Screen Diagonal | 55" 16:9 |
| Bezel Width | Total: 1.7mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.63×0.63mm |
| Active Display Area(WxH) |
1209.6×680.4mm |
| Panel Dimension(WxHxD) | 1211.4×682.2x65.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
Multi Screen Display Wall Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
Packaging & Delivery
Packaging Details: quality carton with full wood box packing
Delivery Detail: 3 working days
