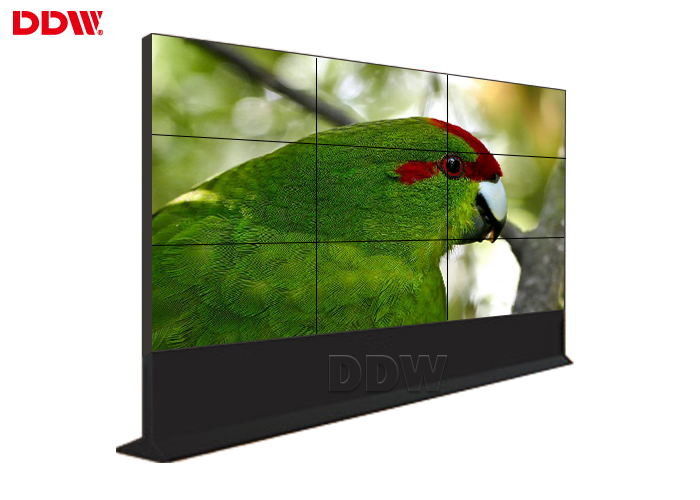

Narrow Bezel Interactive Video Wall With Good Vision Effect RS232 Control

Narrow Bezel Interactive Video Wall With Good Vision Effect RS232 Control

    • Narrow Bezel Interactive Video Wall With Good Vision Effect RS232 Control
  • Narrow Bezel Interactive Video Wall With Good Vision Effect RS232 Control

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550HN12

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Name: Interactive Video Wall Advantage: Narrow Bezel
    Daisy Chain: RJ45 Loop Control Method: RS232 Control
    Total Physical Bezel: 3.5 Mm Resolution: 1920*1080
    Brightness: 700 Nits Feature: Good Vision Effect
    High Light:

    interactive video display

    ,

    interactive touch screen video wall

    Narrow Bezel Interactive Video Wall With Good Vision Effect RS232 Control



    Interactive Video Wall Application:



    The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public



    Interactive Video Wall Parameters


    1, 55 inch original DDW commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
    2, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
    3, FHD video wall unit , high brightness , high contrast , high gamut
    4, Flexible structure design , easy installation , extensible , arbitrary combination
    5, Stable performance , suitable working for a long time



    Interactive Video Wall features



    Unique DNX motion supplement image processing technology

    Dynamic image without motion trail

    Splicing image processing RS-232 RJ45 loop-circuit input/output

    Input by remote control with wire , mobile receiver head



    Interactive Video Wall Specifications



    Panel Specifications
    Active Screen Diagonal 55'' Interactive Video Wall
    Bezel Width Total: 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 700cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Panel Dimension(WxHxD)

    1213.5x684.3x67.7mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Interactive Video Wall Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
