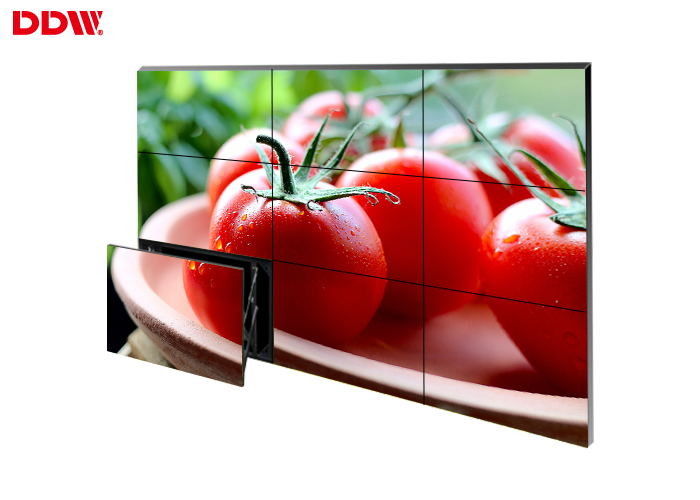

Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display

Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display

    • Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display
  • Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN11

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Interactive Touch Screen Video Wall Feature: Frameless
    Size: 46 LCD Video Wall Display Total Physical Bezel: 3.5 Mm
    Resolution: 1920*1080 Type: Horizontal
    Panel Width: 1021.98mm Panel Height: 576.57mm
    High Light:

    interactive video display

    ,

    interactive touch screen video wall

    Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display



    Interactive Touch Screen Video Wall Feature

    • Full hardware framework, no CPU and operation system;
    • No virus infection, high security
    • Energy saving with standby power watts lower than 5W
    • Encryption processor with built-in registration,which is the best way in the market
    • Color-temperature adjusting system makes it possible to adjust the color difference
    • Supports smart switching and recognition of signal which need remote or others software
    • Smart light sensor can help to adjust the brightness of led backlight automatically
    • Support customized LOGO play when power on, the function of USB upgrade
    • The software can also work together with matrix by easy operation and built-in different matrix protocol which Is also available for clients’ customization needs.



    Interactive Touch Screen Video Wall basic informations:

    •  With original Samsung panel, has a stylish design, lighter weight, easy to handle and install;
    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  Dot Pitch: 0.5302mm(H)*0.5302mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
    •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

    Interactive Touch Screen Video Wall Functions:

    •  Supporting 225 units (15×15) multi-matrix;
    •  Single screen display. Each unit can display the picture independently;
    •  Image overlay. Superimposed on screen another picture;
    •  Easy to choose full screen or multi-screen display by control video wall controller.



    Interactive Touch Screen Video Wall Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
