| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Feature: | Thin Bezel |
|---|---|---|---|
| Application: | Indoor, Semi-outdoor | Processor: | Hdmi Video Wall Processor |
| Contrast Ratio: | 4000:1 | Brightness: | 350-700 Nits |
| Input Voltage: | 220V | ||
| High Light: | art video wall,artistic video wall |
||

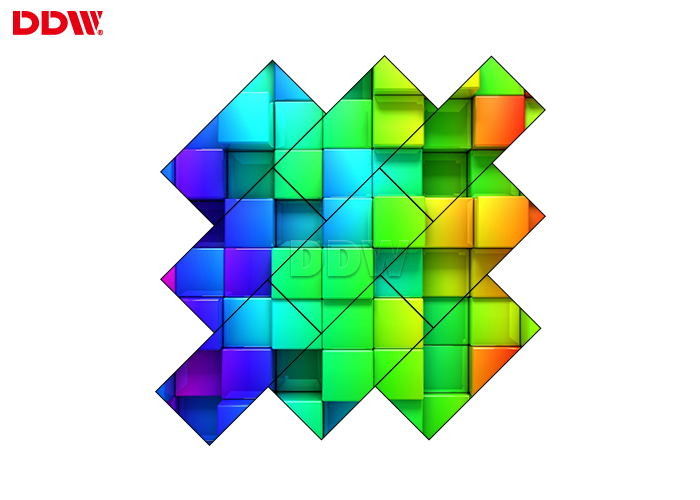

High Brightness Irregular Video Wall With Hdmi Video Wall Processor
Irregular Video Wall features
1. Each screen connected with a video wall distribution box with RJ45 and HDMI output ,
2. Each distribution box connected with both the network switcher and each lcd video wall screen
3. and a Admin server, add unlimitted terminal displays
4. connect your box and your control pc or iPad or Android the same network , then you can control the system, each screen the same content or different or a wall
5. while if you have several signal source to diaplay at the same time to the system, and need to remote control them through ethernet, no problem, this solution can, each signal source connected with a decoder, the decoder connected with the network switcher,
Then the control computer can control the several several signal sources to display freely through ethernet, can open windows for each screen, pixel to pixel output resolution,
Irregular Video Wall Parameters:
| Name | High Brightness Irregular Video Wall With Hdmi Video Wall Processor | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
Contact Person: Juli
Tel: +8618929332215
