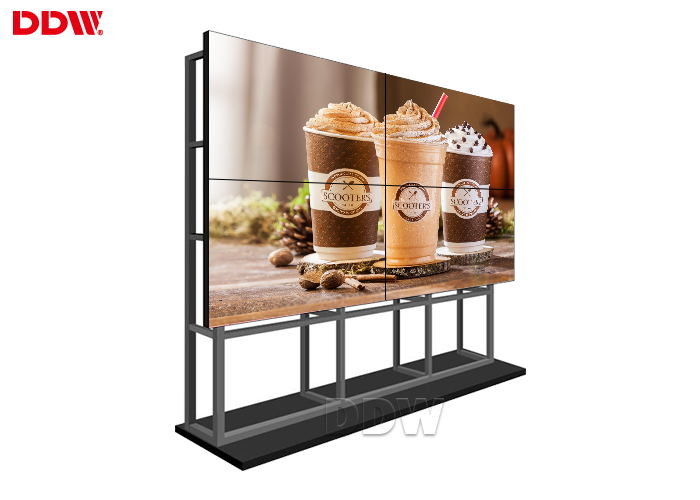

Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area

China Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area supplier

Large Image :  Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: LW490DUN-THC1

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Name: DDW LCD Video Wall Active Area: 1073.8 × 604 Mm
Brightness: 500 Nits Application: Advertising
Backlight: LED Aspect Ratio: 16:9

Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area



DDW LCD Video Wall introduction:

  •  DDW LCD Video Wall With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing cabinets;
  •  Dot Pitch: 0.56mm(H)*0.56mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;

DDW LCD Video Wall features:

  •  Panel size: Customized
  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;



DDW LCD Video Wall Specifications



Model No: DDW-LW49DUN-THC1
LCD Technology LG IPS LCD
Active Screen Diagonal 49 Inch
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



DDW LCD Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
