Ultra Narrow Bezel 3x3 Video Wall / Frameless LCD Display Screen 500 Nits

Good quality Interactive Video Wall for sales
Good quality Interactive Video Wall for sales
Thanks for your hard working for our meeting room project, Your professional service , quality products and competitive price are very impressive.

—— Mr.Vincent Kim

Quickly response and fully understanding what's the client's requirement, professional technology, serious, We agree with the service of your company

—— Mr.James

A perfect shopping! we are very satisfied with their high quality LCD video wall.

—— Mr.West

I'm Online Chat Now

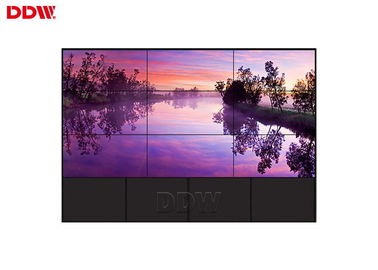

Ultra Narrow Bezel 3x3 Video Wall / Frameless LCD Display Screen 500 Nits

China Ultra Narrow Bezel 3x3 Video Wall / Frameless LCD Display Screen 500 Nits supplier

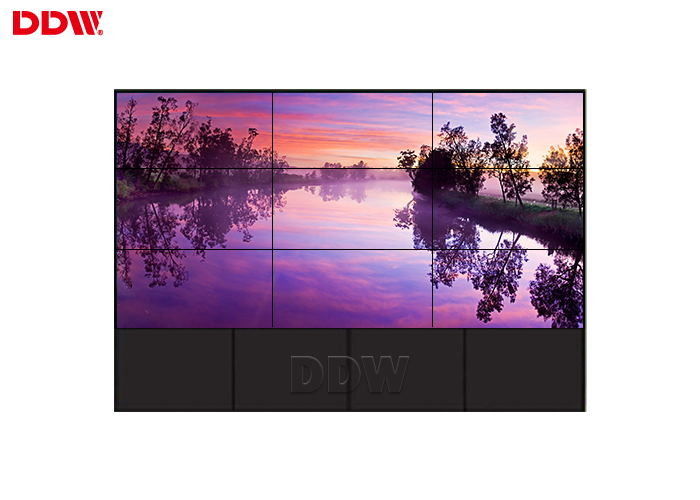

Large Image :  Ultra Narrow Bezel 3x3 Video Wall / Frameless LCD Display Screen 500 Nits

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN11

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: 3x3 Video Wall Resolution: 1080P
Bezel: Ultra Narrow Bezel Active Area: 1018.08×572.67mm
Brightness: 500 Nits Backlight: LED
Panel Width: 1021.98mm Panel Height: 576.57mm

Ultra Narrow Bezel 3x3 Video Wall / Frameless LCD Display Screen 500 Nits



3x3 Video Wall  main parameters



1. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

2. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

3. Flexible structure design ---easy installation ,extensible,arbitrary combination

4. Stable performance,suitable working for a long time.



3x3 Video Wall Application:



3x3 Video Wall is widely used in below fields:surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



3x3 Video Wall Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail



3x3 Video Wall Specifications



Model No: DDW-LW460HN11 3x3 Video Wall
LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 46''
Panel Dimension(WxHxD) 1021.98mmx576.57mmx72.1mm
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 500cd/sqm
Contrast 3500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



3x3 Video Wall Borad Specifications



Support PC Color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Our Product:



1) Indoor digital signage systems;

2) Outdoor LCD digital totems;

3) UNB LCD video walls;

4) Hardware video wall controllers;
