Broadcast Station CCTV Video Wall High Definition Original Panel With Bracket

China Broadcast Station CCTV Video Wall High Definition Original Panel With Bracket supplier

Large Image :  Broadcast Station CCTV Video Wall High Definition Original Panel With Bracket

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THB5

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: CCTV Video Wall Application: Broadcast Station
Feature: High Definition Total Physical Bezel: 1.8 Mm
Resolution: 1920*1080 P Backlit Type: LED
Panel Width: 1211.4mm Panel Height: 682.2mm

Broadcast Station CCTV Video Wall High Definition Original Panel With Bracket

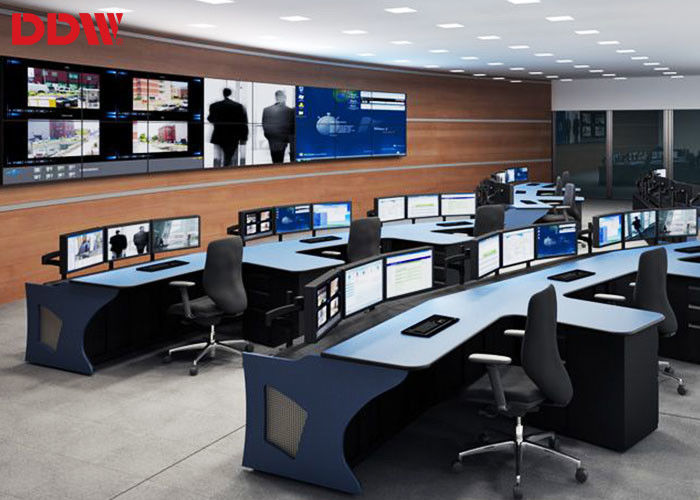

CCTV Video Wall ​Application



CCTV Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



CCTV Video Wall ​basic informations:

  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing cabinets;
  •  Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

CCTV Video Wall ​Functions:

  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.

CCTV Video Wall ​Specifications



Active Screen Diagonal 55 Inch
Panel Dimension(WxHxD)

1211.4x682.2x53.3mm

Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits)

500cd/sqm

Contrast 5000:1 (typ.)
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



CCTV Video Wall ​Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode



Broadcast Station CCTV Video Wall High Definition Original Panel With Bracket
