Dynamic Image Interactive CCTV Video Wall Support Matrix Joint Control

Dynamic Image Interactive CCTV Video Wall Support Matrix Joint Control

    • Dynamic Image Interactive CCTV Video Wall Support Matrix Joint Control
  • Dynamic Image Interactive CCTV Video Wall Support Matrix Joint Control

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN12

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: CCTV Video Wall Panel Dimension: 1021.98mmx576.57mm
    Image: Dynamic Image Display Colors: 8Bit,16.7M
    Control: Support Matrix Joint Control Surface: Anti-glare
    High Light:

    conference room video wall

    ,

    broadcast video wall

    Dynamic Image Interactive CCTV Video Wall Support Matrix Joint Control

    CCTV Video Wall​ Introduction

    CCTV Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.

    CCTV Video Wall parameters

    •  Original DDW commercial grade lcd video wall display panel,16:9 Samsung a-Si TFT-LCD
    •  700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,High gamut .
    •  FHD physical resolution 1920x1080
    •  Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.
    •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    CCTV Video Wall​ Specifications


    Model No:

    DDW-LW460HN12 Interactive CCTV Video Wall

    LCD TechnologySamsung a-Si TFT-LCD
    Active Screen Diagonal46''
    Backlight SystemLED
    Luminance(nits)700cd/sqm
    Contrast5000:1 (typ.)
    Viewing AngleH 178°|V 178°
    Display Colors8Bit,16.7M
    Refresh Rate60Hz
    Response Time<=6ms
    Life(hrs)>60,000(hrs)
    MTBF> 100,000h
    SurfaceAnti-glare
    Standby Power Consumption<3W
    Maximum Power Consumption<=250W
    Power SupplyAC100~240V 50/60 HZ
    CoolingLow noise fans
    Heat Dissipation819 BTU/h (max)
    Working Time Capacity7x24x365hours
    Application AreaIndoor/Semi Outdoor/Outdoor
    Working Temperature0°C~50°C
    Working Humidity85% non-condensing
    Storage Temperature-20-60°C | -4-149°F
    Storage Humidity85% non-condensing


    CCTV Video Wall Board Specification


    SupportPCcolor24bit
    signal Line synchronization range30-80KHZ
    Field synchronization range50-75HZ
    DVIcolor24bit
    HDMILine synchronization range30-80KHZ
    DPField synchronization range50-75HZ
    InterfaceinputVGA x 115pin D-Sub
    DVI x 1DVI-I
    DP x 1Display Port
    HDMI x 2HDMI-19 pin
    outputPANELLVDS 36Pin/2.0
    DP outDP loop out
    PowerInput powerDC24V/12V/5V
    Drive panel5V/12V
    Power modeNormal working mode, power saving mode

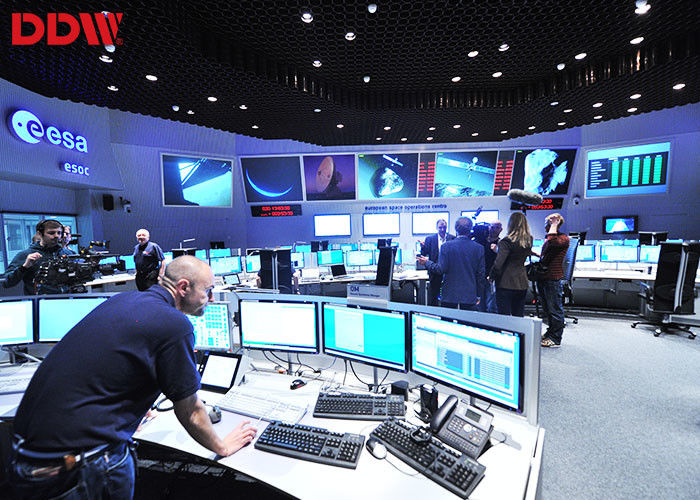

    Dynamic Image Interactive CCTV Video Wall Support Matrix Joint Control 0
