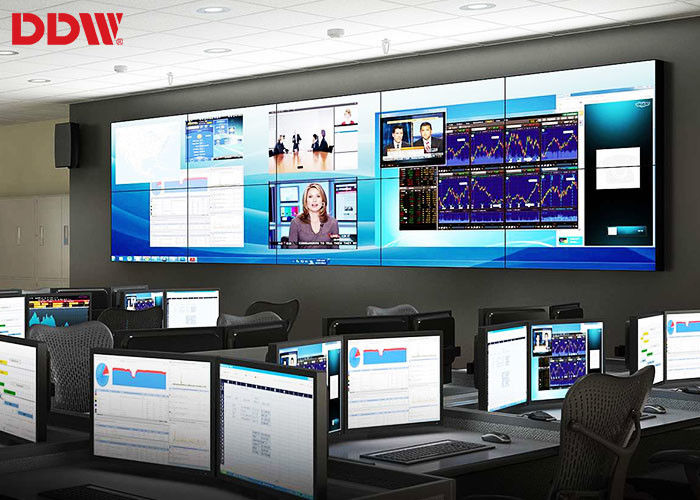

DDW Digital Samsung Video Wall Screens / Bright Outdoor 3x2 Video Wall

DDW Digital Samsung Video Wall Screens / Bright Outdoor 3x2 Video Wall

    • DDW Digital Samsung Video Wall Screens / Bright Outdoor 3x2 Video Wall
  • DDW Digital Samsung Video Wall Screens / Bright Outdoor 3x2 Video Wall

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN11

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Samsung Video Wall Screens Control Method: RS232 Control
    Total Physical Bezel: 3.5 Mm Type: Digital
    Backlit Type: LED Panel Width: 1021.98mm
    Panel Height: 576.57mm Size: 3x2 Video Wall
    High Light:

    conference room video wall

    ,

    control room displays

    DDW Digital Samsung Video Wall Screens / Bright Outdoor 3x2 Video Wall



    Samsung Video Wall Screens informations:

    •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  The installation method: floor standing cabinets;
    •  Dot Pitch: 0.532mm(H)*0.5302mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
    •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

    Samsung Video Wall ScreensFunctions:

    •  Supporting 225 units (15×15) multi-matrix;
    •  Single screen display. Each unit can display the picture independently;
    •  Image overlay. Superimposed on screen another picture;
    •  Easy to choose full screen or multi-screen display by control video wall controller.

    Samsung Video Wall Screens Specifications



    LCD Technology Samsung a-Si TFT-LCD
    Active Screen Diagonal 46''
    Panel Dimension(WxHxD)

    1021.98x576.57x72.1mm

    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 500cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    Samsung Video Wall Screens Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    DDW Digital Samsung Video Wall Screens / Bright Outdoor 3x2 Video Wall 0
