Wall Mounted Multiple Tv Video Wall / Multi Color Frameless Video Wall

Wall Mounted Multiple Tv Video Wall / Multi Color Frameless Video Wall

    • Wall Mounted Multiple Tv Video Wall / Multi Color Frameless Video Wall
  • Wall Mounted Multiple Tv Video Wall / Multi Color Frameless Video Wall

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN-THB5

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Surface: Anti-glare Product Name: Multiple Tv Video Wall
    Color: Multi Color Resolution: 1920*1080
    Input Voltage: AC 220v-250v Total Physical Bezel: 1.8mm
    Refresh Rate: 60Hz White Point: 10,000 K
    High Light:

    multi display video wall

    ,

    lcd screen wall

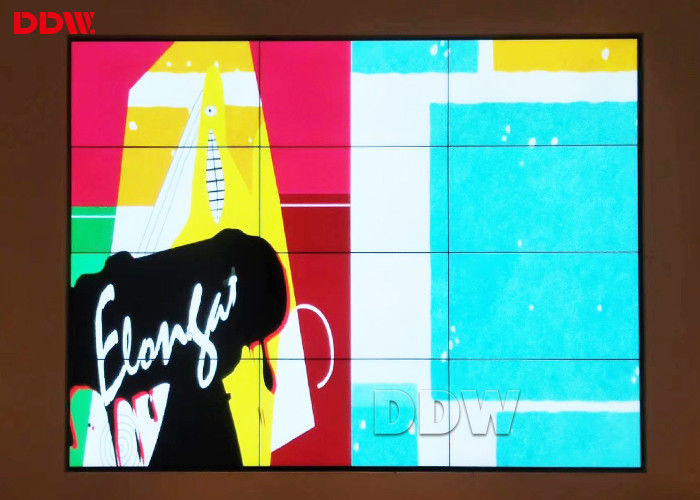

    Wall Mounted Multiple Tv Video Wall / Multi Color Frameless Video Wall





    Multiple Tv Video Wall Main features:



    1. LG industrial panel, support 24 hours continously playing;
    2.The gaps between panels is 5.3mm;
    3. Full hardware structure, no CPU and operation system;
    4. Easy installation, only fixed them together by metal bracket ;
    5. Easy operation , can operate the system together with the software flexible,we offer free software;
    6. Support RS-232 serial ports remote control;
    7. Support multi signal input include BNC, YPbPr,VGA,HDMI,RS232;
    8. Images are displayed smoothly and naturally without time delay and tailing, and the image quality are quite smoothy.
    9. supporting 10x10 pcs panels splice



    Multiple Tv Video Wall parameters



    1. Original LG commercial grade lcd video wall display panel

    2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

    3. FHD physical resolution 1920x1080

    4. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.

    5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. Flexible structure design ---easy installation ,extensible,arbitrary combination

    7. Stable performance,suitable working for a long time



    Multiple Tv Video Wall features:



    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support Creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    6. Input by remote control with wire, mobile receiver head.



    Multiple Tv Video Wall Specifications:



    Surface: Anti-glare Product Name: Multiple Tv Video Wall
    Color: Multi Color Resolution: 1920*1080
    Input Voltage: AC 220v-250v Total Physical Bezel: 1.8mm
    Refresh Rate: 60Hz White Point: 10,000 K



    Multiple Tv Video Wall ​Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
