Long Using Life Commercial Video Wall For Security Monitoring Center 50000 Hours

China Long Using Life Commercial Video Wall For Security Monitoring Center 50000 Hours supplier

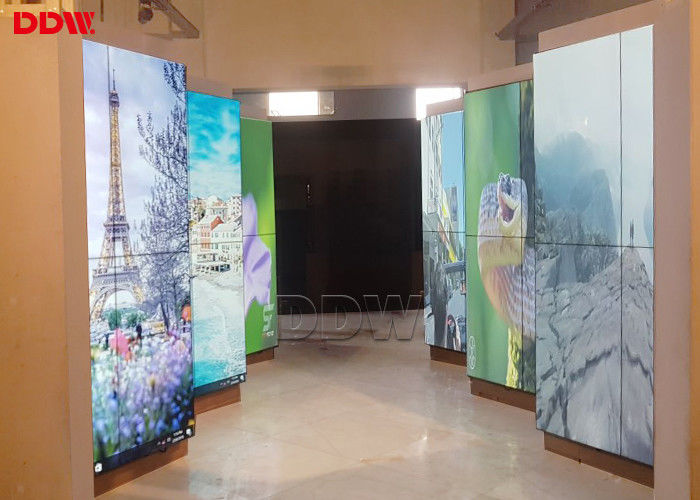

Large Image :  Long Using Life Commercial Video Wall For Security Monitoring Center 50000 Hours

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN13

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Commercial Video Wall Advantage: Long Using Life
Resolution: 1920*1080 Input Voltage: AC 220v-250v
Total Physical Bezel: 1.7mm Refresh Rate: 60Hz
Brightness: 700nit Dimension: 1020.02x574.61 Mm

Long Using Life Commercial Video Wall For Security Monitoring Center 50000 Hours



Commercial Video Wall Application



Commercial Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



Commercial Video Wall Narrow Bezel:

  •  46 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
  •  5×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;

Commercial Video Wall  View Angle

  •  178 degree wide viewing angle, the full range of display;
  •  Different modules optional: such as heating module, built in camera, air conditioner etc;

Commercial Video Wall HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

Commercial Video Wall Functions:

  •  Supporting 225 units (15×15) multi-matrix;
  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.

 Panel dimension and interfaces:

  •  Dimension: 1020.02x574.61 mm;
  •  Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output



Commercial Video Wall Specifications:



Model No: DDW-LW460HN13
LCD Technology SAMSUNG LCD
Active Screen Diagonal 46 Inch
Total Bezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)
1020.02x574.61x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Commercial Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
