Original LG Panel Commercial Video Wall Easy To Handle And Install

Original LG Panel Commercial Video Wall Easy To Handle And Install

    • Original LG Panel Commercial Video Wall Easy To Handle And Install
  • Original LG Panel Commercial Video Wall Easy To Handle And Install

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN-THB5

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Panel: Original LG Panel Product Name: Commercial Video Wall
    Backlight: LED Resolution: 1920*1080
    Input Voltage: AC 220v-250v Total Physical Bezel: 1.8mm
    Refresh Rate: 60Hz Advantage: Easy To Handle And Install
    High Light:

    multi display video wall

    ,

    lcd screen wall

    Original LG Panel Commercial Video Wall Easy To Handle And Install​



    Commercial Video Wall basic informations:

    •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  7x24x365 keep working;

    Commercial Video Wall Applications

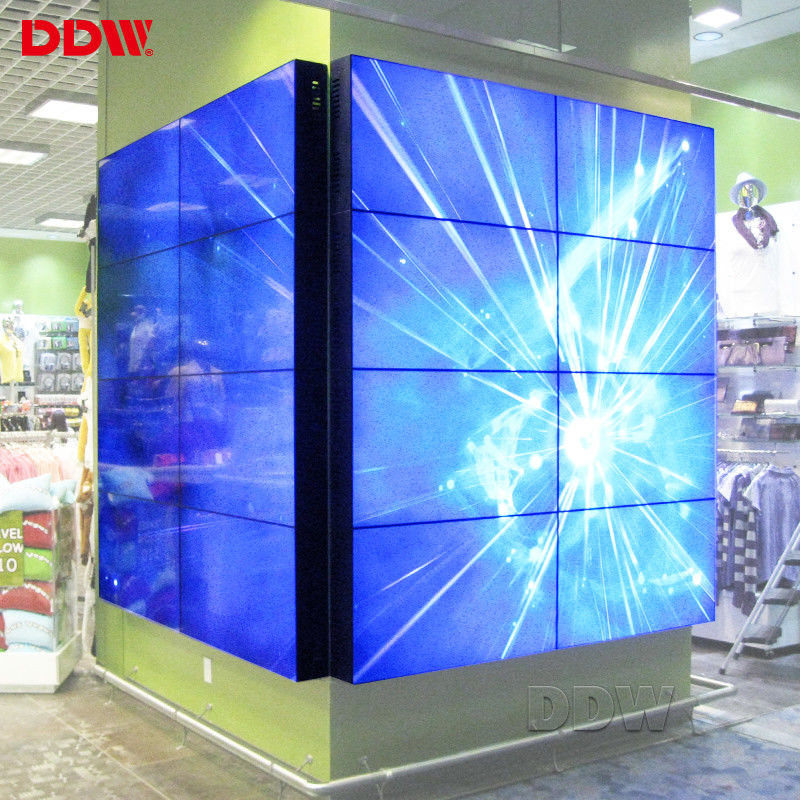

    Commercial Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



    Commercial Video Wall parameters



    1. Original LG commercial grade lcd video wall display panel

    2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

    3. FHD physical resolution 1920x1080

    4. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.

    5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. Flexible structure design ---easy installation ,extensible,arbitrary combination

    7. Stable performance,suitable working for a long time



    Commercial Video Wall Specifications:



    Model No: DDW-LW550DUN-THB5 frameless video wall
    Active Screen Diagonal 55"
    Total Bezel Width 1.8 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Panel Dimension(WxHxD)

    1211.4x682.2x53.3mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Commercial Video Wall Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out



    Commercial Video Wall Key features:

    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support Creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Dynamic image without motion trail
