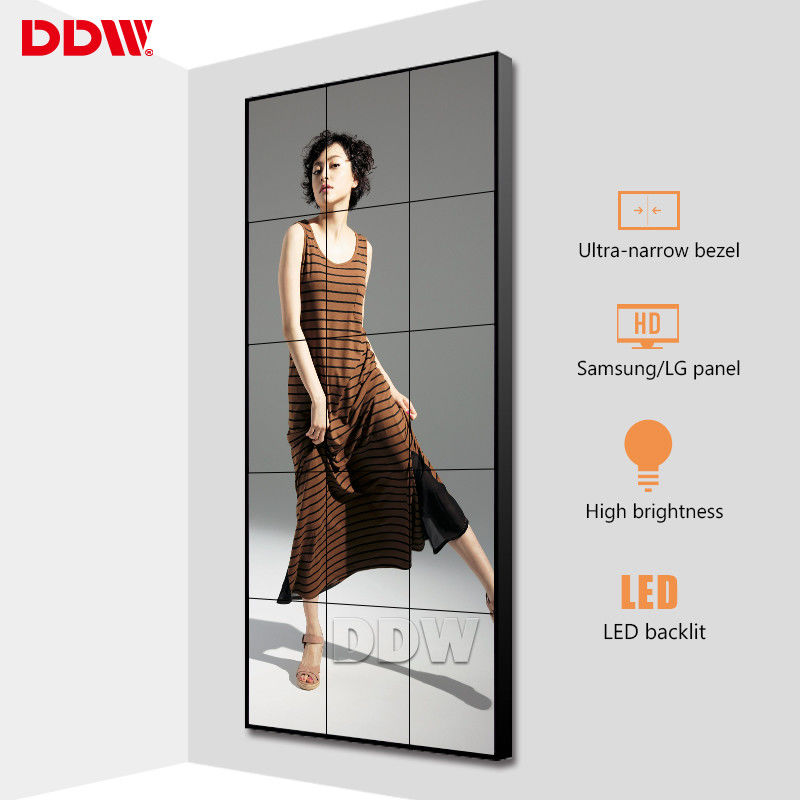

Vertical 55" Commercial Video Wall For Security Monitoring Center / Gym Center

Vertical 55" Commercial Video Wall For Security Monitoring Center / Gym Center

    • Vertical 55" Commercial Video Wall For Security Monitoring Center / Gym Center
  • Vertical 55" Commercial Video Wall For Security Monitoring Center / Gym Center

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550HN12

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 55" Commercial Video Wall Type: Vertical
    Response Time: <=6ms Display Colors: 8Bit,16.7M
    Power Supply: AC100~240V 50/60 HZ Cooling: Low Noise Fans
    Aspect Ratio: 16:9 Application: Security Monitoring Center / Gym Center
    High Light:

    lcd screen wall

    ,

    seamless lcd video wall

    Vertical 55" Commercial Video Wall For Security Monitoring Center / Gym Center



    Commercial Video Wall Functions:

    • Supporting 225 units (15×15) multi-matrix;
    • Single screen display. Each unit can display the picture independently;
    • Image overlay. Superimposed on screen another picture;
    • Easy to choose full screen or multi-screen display by control video wall controller.

    Commercial Video Wall Key features:



    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Input by remote control with wire, mobile receiver head.



    Commercial Video Wall Specifications



    Model No:

    DDW-LW550HN12 Commercial Video Wall

    Active Screen Diagonal 55"
    Pixel Pitch(WxH)(mm) 0.63x0.63
    Active Display Area(WxH)(mm)

    1209.6 × 680.4

    Panel Dimension(WxHxD)(mm)

    1213.5x684.3x67.7

    Total Bezel Widthmm 3.5
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 700 cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    Commercial Video Wall Board Specification



    Support PC color 24bit
    signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    DVI color 24bit
    HDMI Line synchronization range 30-80KHZ
    DP Field synchronization range 50-75HZ
    Interface input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Service


    Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.


    DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
