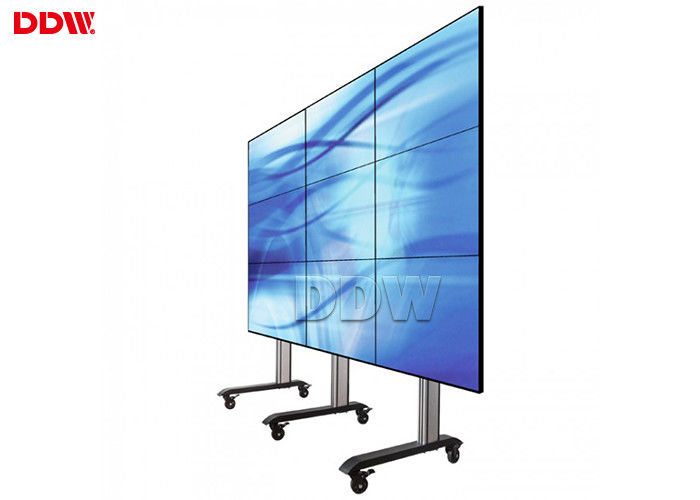

Stylish Design Commercial Video Wall For CCTV Control Room Conference

Stylish Design Commercial Video Wall For CCTV Control Room Conference

    • Stylish Design Commercial Video Wall For CCTV Control Room Conference
  • Stylish Design Commercial Video Wall For CCTV Control Room Conference

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN-THA3

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Panel Size: 55 Inch Bezel Width: 1.8 Mm
    Product Name: Commercial Video Wall Backlight: LED
    Design: Stylish Design Aspect Ratio: 16:9
    Working Humidity: 0.85 Application: CCTV Control Room Conference
    High Light:

    lcd screen wall

    ,

    seamless lcd video wall

    Stylish Design Commercial Video Wall For CCTV Control Room Conference




    LCD Screen Wall Application



    LCD Screen Wall is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



    LCD Screen Wall basic informations:

    •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  The installation method: floor standing cabinets;
    •  Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
    •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
    •  7x24x365 keep working;

    LCD Screen Wall  key features:

    •  Panel size: 46″, 49″, 55″, 60″ Optional
    •  Ultra narrow frame design, the narrowest bezel is 1.8mm and the bezel can be optional.
    •  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
    •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
    •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
    •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;

    LCD Screen Wall  Specifications:



    Model No: DDW-LW550DUN-THA3 LCD Screen Wall
    Active Screen Diagonal 55''
    Total Bezel Width 1.8 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 700 cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6×680.4mm

    Panel Dimension(WxHxD)

    1211.4x682.2x53.3 mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Commercial Video Wall ​Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Facilities:



    We group companies own following facilities to accomplete the business:

    1) 2500㎡ production department

    2) Our own metal factory 3000㎡

    3) Our own panel warehouse 1500㎡
