DDW Floor Standing 55 Inch Video Wall / Moveable Frameless Video Wall

China DDW Floor Standing 55 Inch Video Wall / Moveable Frameless Video Wall supplier

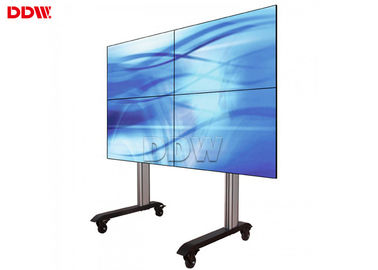

Large Image :  DDW Floor Standing 55 Inch Video Wall / Moveable Frameless Video Wall

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN12

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: 55 Inch Video Wall Backlight: LED
Response Time: <=6ms Display Colors: 8Bit,16.7M
Power Supply: AC100~240V 50/60 HZ Cooling: Low Noise Fans
Aspect Ratio: 16:9 Type: Floor Standing

DDW Floor Standing 55 Inch Video Wall / Moveable Frameless Video Wall



55 Inch Video WallIntroduction

  • Panel size: 46″, 49″, 55″, 60″, 65″ optional;
  • Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
  • Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  • The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  • Interfaces: 2xHDMI,DP loop, DVI , VGA ,CVBS ,USB , Switch, Power port;
  • Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker

55 Inch Video WallKey features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Input by remote control with wire, mobile receiver head.



55 Inch Video Wall Specifications



Model No:

DDW-LW550HN12 55 Inch Video Wall

Active Screen Diagonal 55"
Pixel Pitch(WxH)(mm) 0.63x0.63
Active Display Area(WxH)(mm)

1209.6 × 680.4

Panel Dimension(WxHxD)(mm)

1213.5x684.3x67.7

Total Bezel Widthmm 3.5
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700 cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



Commercial Video Wall Video Wall Board Specification



Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)





Functions:

  • Supporting 225 units (15×15) multi-matrix;
  • Single screen display. Each unit can display the picture independently;
  • Image overlay. Superimposed on screen another picture;
  • Easy to choose full screen or multi-screen display by control video wall controller.
