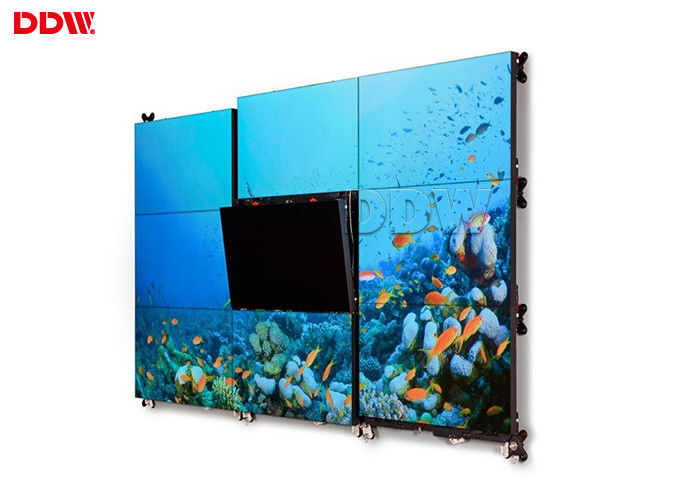

16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input

China 16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input supplier

Large Image :  16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN11

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Input: 2 X HDMI Input Bezel Width: 3.5 Mm
Surface: Anti-glare Brightness: 500 Nits
Product Name: Seamless Monitor Wall Color: 8Bit , 16M
Aspect Ratio: 16:9 Panel Brand: SAMSUNG

16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input




Seamless Monitor Wall informations:



  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing cabinets;
  •  Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;

Our Product:



1) Indoor digital signage systems;

2) Outdoor LCD digital totems;

3) UNB LCD video walls;

4) Hardware video wall controllers;

5) Stretched bar LCD displays;

6) Indoor Outdoor LED displays.



Seamless Monitor Wall Specifications:



Model No: DDW-LW550HN11 Seamless Monitor Wall
LCD Technology SAMSUNG LCD
Active Screen Diagonal 55''
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1213.5x684.3x67.7 mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Seamless Monitor Wall Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode



Seamless Monitor Wall key features:

  • Panel size: Optional
  • Ultra narrow frame design, the narrowest bezel is 3.5 mm and the bezel can be optional.
  • Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  • The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  • 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  • Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  • Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  • Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
