Indoor Interactive Touch Screen Video Wall , TFT 55 Video Wall Display

China Indoor Interactive Touch Screen Video Wall , TFT 55 Video Wall Display supplier

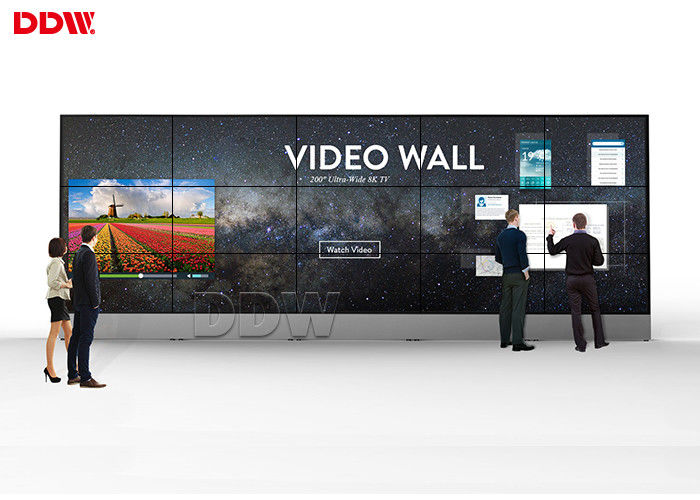

Large Image :  Indoor Interactive Touch Screen Video Wall , TFT 55 Video Wall Display

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN16

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Interactive Touch Screen Video Wall Type: TFT
Panel Size: 55 Inch Max Resolution: 1920x1080
Pixel Pitch: 0.63x0.63mm Contrast Ratio: 4000:1
Brightness: 500nits Application: Indoor

Indoor Interactive Touch Screen Video Wall / TFT 55 Video Wall Display





Interactive Touch Screen Video Wall Quick Details





Total bezel width: 1.7mm



Resolution: 1920*1080

Contrast: 4000:1

Surface: anti-glare

Video wall monitor power consummtion:250W

Application condition: indoor and semi-outdoor



Interactive Touch Screen Video Wall features:



1, Original 55 inch DDW industrial grade LCD video wall panel,16:9 LG a-Si TFT-LCD

2, Only 1.7mm ultra narrow bezel.high quality ,Practical ,good vision effect.

3, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

4, FHD video wall unit--- High brightness,high contrast,High gamut .

5, Flexible structure design ---easy installation ,extensible,arbitrary combination

6, Stable performance,suitable working for a long time



Interactive Touch Screen Video Wall Applications



This Interactive Touch Screen Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



Interactive Touch Screen Video Wall Panel Specifications



LCD Technology SAMSUNG DID LCD
Active Screen Diagonal 55"
Bezel Width Total: 1.7mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.63×0.63mm
Active Display Area(WxH)

1209.6 × 680.4 mm

Panel Dimension(WxHxD) 1211.54×682.34x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F



Facilities:



We group companies own following facilities to accomplete the business:

1) 2500㎡ production department

2) Our own metal factory 3000㎡

3) Our own panel warehouse 1500㎡

All departments R&D Technical, Purchase, Production (Assemble-QC-Packing-Shipping-Aftersales), Domestic & Overseas Sales, Merchandiser and Public Relationship joint corporately & effectively.
