700 Nits 55 Inch Video Wall / Samsung Video Wall Displays 1920x1080P

China 700 Nits 55 Inch Video Wall / Samsung Video Wall Displays 1920x1080P supplier

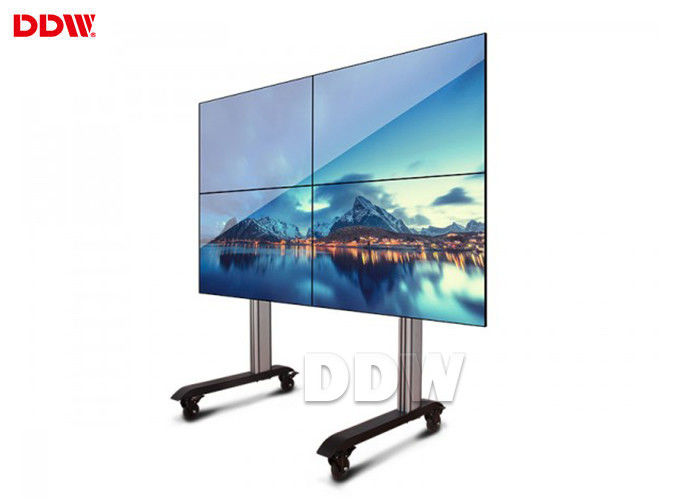

Large Image :  700 Nits 55 Inch Video Wall / Samsung Video Wall Displays 1920x1080P

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN14

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
No.: 55 Inch Video Wall Brightness: 700 Nits
Product Name: DDW LCD Video Wall Backlight: LED
Resolution: 1920x1080 Input Voltage: AC 220v-250v
Total Physical Bezel: 1.7mm Refresh Rate: 60Hz

700 Nits 55 Inch Video Wall / Samsung Video Wall Displays 1920x1080P





55 Inch Video Wall basic informations:

  •  With original Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;



55 Inch Video Wall main parameters



1. Original DDW commercial grade lcd video wall display panel

2. 700 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut .

3. FHD physical resolution 1920x1080

4. Only 1.7mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. Flexible structure design ---easy installation ,extensible,arbitrary combination

7. Stable performance,suitable working for a long time



55 Inch Video Wall Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Unique DNX motion supplement image processing technology,

5. Dynamic image without motion trail

6. Splicing image processing RS-232 RJ45 loop-circuit input/output.

7. Input by remote control with wire, mobile receiver head.



55 Inch Video Wall Specifications:



Model No: DDW-LW550HN14
LCD Technology LG IPS LCD
Active Screen Diagonal 55"
Total Bezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1211.54×682.34x65.1mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



LCD Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
