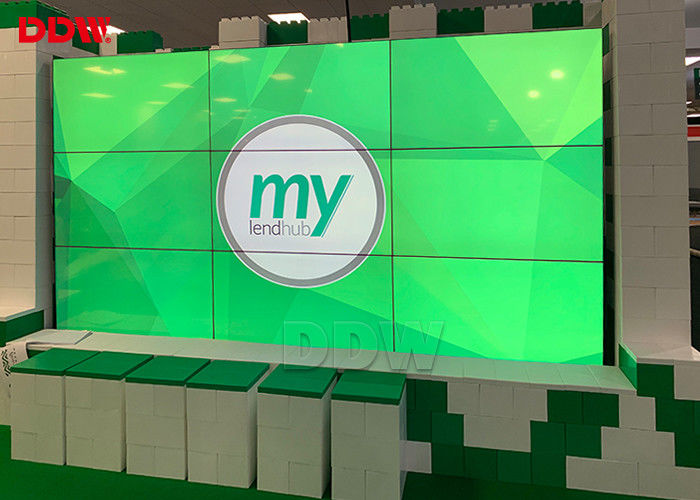

High Brightness DDW LCD Video Wall For Conference And Meeting Rooms

China High Brightness DDW LCD Video Wall For Conference And Meeting Rooms supplier

Large Image :  High Brightness DDW LCD Video Wall For Conference And Meeting Rooms

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN12

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: DDW LCD Video Wall Brightness: 700 Nits
Panel Width: 1021.98mm Backlight: LED
Panel Heigh: 576.57 Mm Panel Size: 46''
Active Area: 1018.08×572.67mm Dot: 0.5302x0.5302

High Brightness DDW LCD Video Wall For Conference And Meeting Rooms





DDW LCD Video Wall Applications



DDW LCD Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



DDW LCD Video Wall Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

7. Input by remote control with wire, mobile receiver head.



46 " LCD video wall main parameters

1. Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD

2. 700 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,High gamut .

7. Flexible structure design ---easy installation ,extensible,arbitrary combination

8. Stable performance,suitable working for a long time



Specifications

Model No: DDW-LW460HN12
LCD Technology LG a-Si TFT-LCD
Active Screen Diagonal 46"
Pixel Pitch(WxH) 0.5302x0.5302mm
Active Display Area(WxH)

1018.08×572.67 mm

Panel Dimension(WxHxD)

1021.98×576.57x66.9mm

Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700cd/sqm
Contrast 4000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



Video Wall Board Specification



Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
