Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth

China Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth supplier
Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth supplier Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth supplier Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth supplier

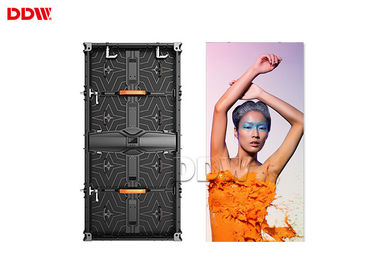

Large Image :  Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LEDP6.25

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: LED Video Wall Display Maitainence Mode: Rear Maitainence
Panel Weight: 15kg Connection Type: Ethernet /WIFI
Panel Type: Die-case Aluminum Drive Mode: Constant Driving,1/10S
Outer Frame Colour: Black Signal Output: HDMI

LED Video Wall Display Black Outer Frame 12bits Processing Depth





  •  Front maintain cabinet/ Convenient to assemble and disassemble

  •  Use of Special heat dissipation structure make excellent heat dissipation.

  •  Ultra-wide viewing angle give you the largest screen viewing area

  •  Die-cast aluminum cabinet design light and easy to transport.



Intelligent monitoring module

Intelligent cabinet with intelligent monitoring (LCD display) shows the working status, smart monitoring the signal and record the span life.



Perfect design of maintenance

RGB Share’s new generation rental series supports both front and rear maintenance (both module and power supply), saving time and space for customers.



Cabinet is multi-waterproof design

Protection grade IP65,mature signal transmission, safer and more reliable.



Protection design

To protect both the module and user from accidental damage all cabinet corners are designed with protectable way.



LED Video Wall Display Specification

Pixel Configuration SMD3535
Pixel Pitch(mm) 6.25
Pixel Density(dot/m2) 25600
Module Pixel Matrix (W×H) 40×40
Module Size(mm) 250(W)×250(H)
Module Weight(kg) 0.6
Module Power Consumption Max.(W) 45
Module/Panel(W×H) 2×4
Panel Resolution(W×H) 80×160
Panel Size(mm) 500(W)×1000(H)
Panel Weight(kg) 15
Maitainence Mode Rear Maitainence
Panel type Die-case Aluminum
Brightness(nits) ≥3000(color temperature 6500k)
Color Temperature(K) 3200—9300
Viewing Angle(Hor/Vert°) 140/120
Power Consumption Max(W/m2) 800
Power Consumption Avg(W/m2) 200-300
Operating Power Source AC90~264V,Frequency 47-63(Hz)
Frame Frequency(Hz) 50&60
Drive Mode Constant Driving,1/10S
Gray Scale 65536
Refresh Rate(Hz) 3840
Gray Scale per Color Level 16bit
Working Temperature/Humidity(℃/RH) -20 – 60 / 10%-85%RH
Storage Temperature/Humidity(℃/RH) -20 – 60 / 10%-85%RH



Multi Interface LED Video Wall Display Black Outer Frame 12bits Processing DepthMulti Interface LED Video Wall Display Black Outer Frame 12bits Processing Depth
