32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable

China 32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable supplier
32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable supplier 32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable supplier 32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable supplier

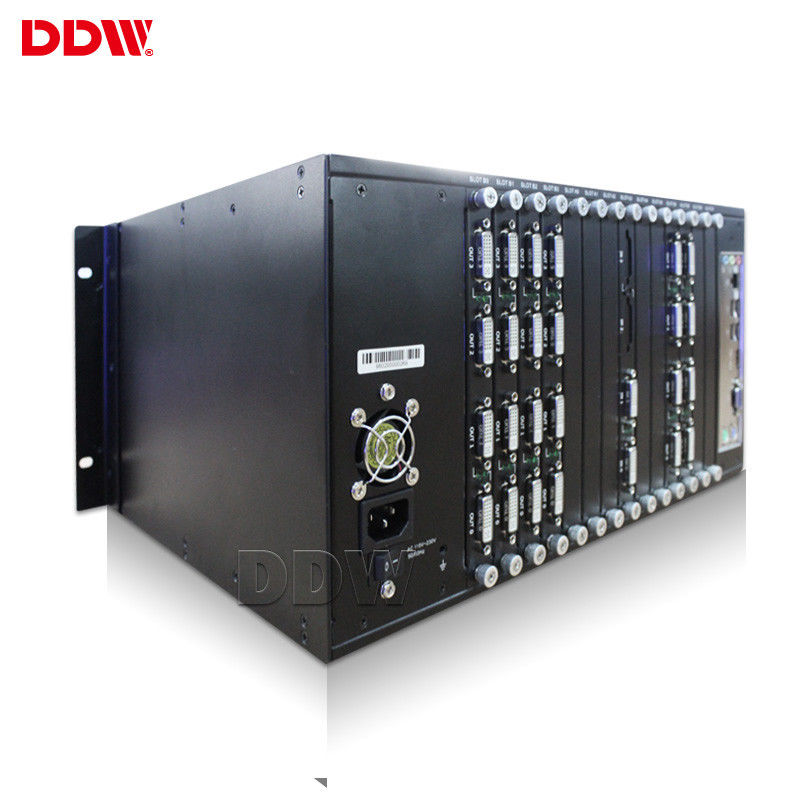

Large Image :  32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VM0808

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Signal Input: 8 X HDMI Signal Output: 8 X HDMI
Roam,zoom,PIP: Support Color Quality: 32bit
Application: Conference Room Control Method: RS232,IP
Product Name: Hdmi Matrix Video Wall EDID: Support

32bit Color Quality Video Wall Matrix Security Video Wall Display



Video Wall Matrix ​Key Features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Flexibility to increase the input/output board
5. Support partial input and output cards with mixed interpolation
6. Input/output card supports hot-swappable, plug-and-play functionality
7. Output resolution up to 1920 x 1200
8. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
9. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
10. Redundant power supply design, thermostatically controlled fan
11. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments



Video Wall Matrix ​ Simplified installation & disassembly

  •  Flexible modular design, Input and output card board;
  •  Support input of a variety of interfaces and signal source;
  •  Matching features, pre-monitoring;
  •  Echo function, input and output characters display with superimposed;

Pure hardware architecture board any combination:

  •  Industrial chassis with CPCI structure;
  •  Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
  •  Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;


Video Wall Matrix ​Description

Item No. Components Descriptions QTY/signal signal type
1 Video wall Matrix SwitcherDDW-VM0808 8 HDMI input ,8 HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board 16 HDMI
2 Software Installed in PC to control,OS windows 1
3 Accessories Power plug,IR Controller,English Manual 1
input card
interface 8*HDMI type a
signal protocal HDMI 1.3, HDCP 1.3, compatible DVI1..0
EDID support
input bandwidth 165MHZ
resolution HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
output card
interface 8*HDMI type a
signal protocal HDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth 165MHZ
output resolution

1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,
1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,
1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,
1024x768@60Hz,800x600@60Hz

switch effect seamless switching
System function
RS232 IN 1
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show one image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming NO
Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.

Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024*768/60HZ-1920*1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female
female
