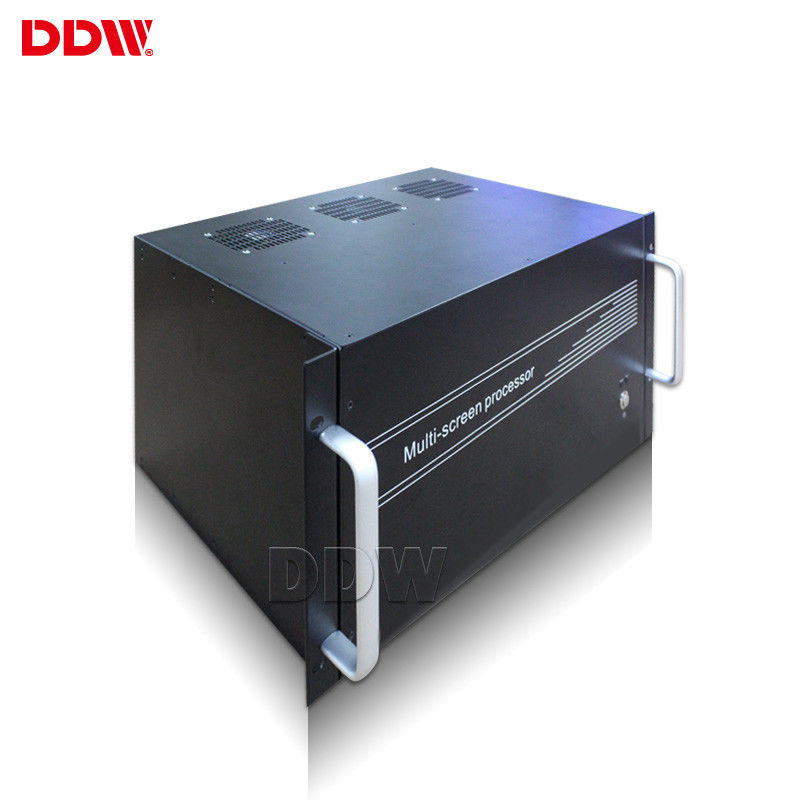

Multi Display HDMI Video Wall Controller 1080P Resolution Seamless Switching

China Multi Display HDMI Video Wall Controller 1080P Resolution Seamless Switching supplier
Multi Display HDMI Video Wall Controller 1080P Resolution Seamless Switching supplier Multi Display HDMI Video Wall Controller 1080P Resolution Seamless Switching supplier Multi Display HDMI Video Wall Controller 1080P Resolution Seamless Switching supplier

Large Image :  Multi Display HDMI Video Wall Controller 1080P Resolution Seamless Switching

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH128128

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Video Wall Matrix Output Resolution: 1920x1080
Max PIP Per Screen: 1,4,16,customization Maximum Input Numbers: 128
Maximum Output Numbers: 128 Control Method: RS232,IP
Working Time: 365x7x24hrs Vertical/Horizontal Display: Support

Multi Display HDMI Video Wall Matrix 1080P High Resolution



Video Wall Matrix key features:

  •  With special virtual display technology, full channel real HD 1080P signal processing;
  •  Signal Preview function available;
  •  Supporting PC, Android APK, iOS APP control software;
  •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
  •  Scaling and positioning, size is scalable and position adjustable;
  •  With background logo display function. It can be customized;
  •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

Multi – group video wall management:

  •  It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
  •  Setting different resolutions, adjust colors and other parameters.


DDW Video Wall Processor Technical Specifications

Item No. Components Descriptions QTY/signal signal type
1 Video wall Matrix SwitcherDDW-VM128128 128HDMI input ,128HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board 256 HDMI
2 Software Installed in PC to control,OS windows 1
3 Accessories Power plug,IR Controller,English Manual 1
input card
interface 128*HDMI type a
signal protocal HDMI 1.3, HDCP 1.3, compatible DVI1..0
EDID support
input bandwidth 165MHZ
resolution HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
output card
interface 128*HDMI type a
signal protocal HDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth 165MHZ
output resolution

1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,
1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,
1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,
1024x768@60Hz,800x600@60Hz

switch effect seamless switching
System function
RS232 IN 1
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show one image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming NO
Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.


Technical specification of input/output connectors

VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

Multi Display HDMI Video Wall Controller 1080P Resolution Seamless SwitchingMulti Display HDMI Video Wall Controller 1080P Resolution Seamless SwitchingMulti Display HDMI Video Wall Controller 1080P Resolution Seamless Switching
