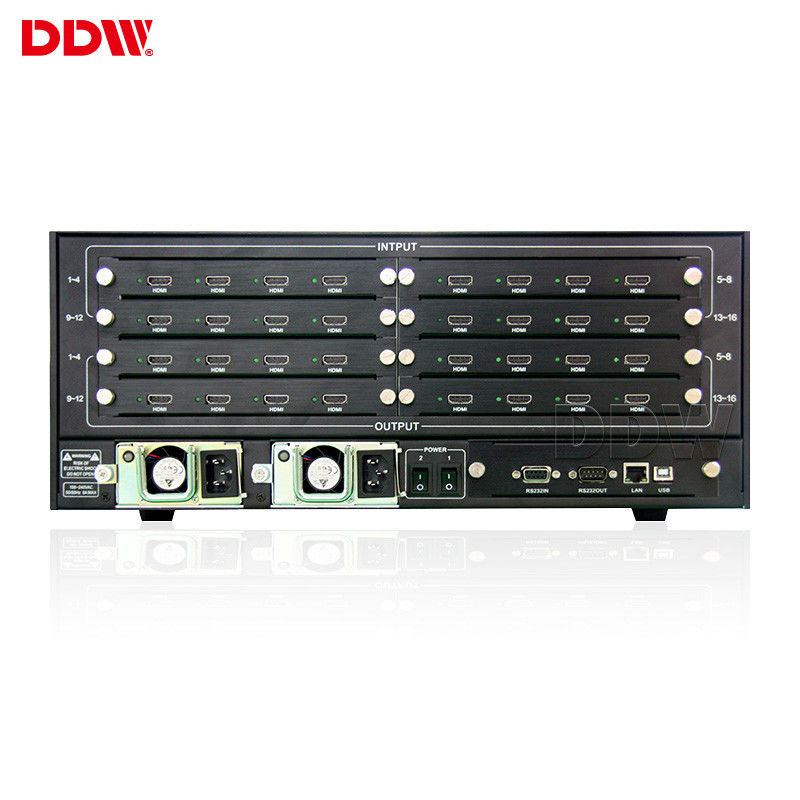

HDMI Multi Screen Video Wall Equipment , 32bit Standalone Video Matrix Controller

HDMI Multi Screen Video Wall Equipment , 32bit Standalone Video Matrix Controller

    • HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller
    • HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller
    • HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller
  • HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VM0707

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Video Wall Matrix Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Control Method: RS232,LAN Working Time: 365x7x24hrs
    Baud Rate: 115200 EDID: Support
    High Light:

    video wall multiplexer

    ,

    video matrix controller

    Multi Display HDMI Video Wall Matrix seamless switching


    Video and Image Processing :
    1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
    2. Inputs/windows can be resized, layered and positioned across screen boundaries
    3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
    4. Input sources can be cropped to remove the edge pixels and lines
    5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured


    Pure hardware architecture board any combination:

    •  Industrial chassis with CPCI structure;
    •  Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
    •  Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;


    Multi – group video wall management:

    •  It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
    •  Setting different resolutions, adjust colors and other parameters.


    DDW Video Wall Matrix Technical Specifications

    Item No. Components Descriptions QTY/signal signal type
    1 Video wall Matrix SwitcherDDW-VM0707 7HDMI input ,7HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board 14 HDMI
    2 Software Installed in PC to control,OS windows 1
    3 Accessories Power plug,IR Controller,English Manual 1
    input card
    interface 7*HDMI type a
    signal protocal HDMI 1.3, HDCP 1.3, compatible DVI1..0
    EDID support
    input bandwidth 165MHZ
    resolution HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ
    output card
    interface 7*HDMI type a
    signal protocal HDMI 1.3, VGA 1.0, compatible DVI1..0
    output bandwidth 165MHZ
    output resolution

    1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz,
    1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz,
    1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz,
    1024x768@60Hz,800x600@60Hz

    switch effect seamless switching
    System function
    RS232 IN 1
    IR IN 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)
    Vertical/Horizontal Display Support
    Combine Display Support combine any horizental &vertical numbers of screens and show display
    Support combine all screens together to show one image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming NO
    Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
    Payment Terms &Conditions
    Warranty: 3years warranty,extra fee will be charged for additional years warranty.


    Technical specification of input/output connectors

    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female


    HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller 0
    HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller 1HDMI Multi Screen Video Wall Equipment  , 32bit Standalone Video Matrix Controller 2
