32 HDMI Output LED Video Wall Scaler 4k Video Wall Controller 1920 X 1080 Output

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 ,CE , RoHS , FCC , 3C
Model Number:	DDW-VPH3232

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Double layer carton pack
Delivery Time:	3working days upon payment
Payment Terms:	T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Product Name:	Video Wall Scaler	Maximum Input Numbers:	32
Maximum Output Numbers:	32	Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN	Consumption:	12W/channel
Color Depth:	32bit/pixel	Input Connector:	BNC
High Light:	hdmi seamless matrix switcher , hdmi video controller

32 HDMI Output Video Wall Scaler 4k Video Wall Controller 1920 X 1080 Output

Video Wall Scaler has following key features:
1. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
2. Support display at arbitrary position, at any size and any superimposed
3. Support open-window effects processing
4. Support large-screen image freeze
5. Full hardware configuration without operating system
6. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
7. Support for DIV,HDMI,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats
8. Support DIV and 3G-SDI signal output
9. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats
10. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously

Pure hardware architecture board any combination:

Industrial chassis with CPCI structure;
Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;

Multi – group video wall management:

It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
Setting different resolutions, adjust colors and other parameters.

DDW Video Wall Scaler Technical Specifications

Model series	With CBD	Function	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	~	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	CVBS	Support PAL/NTSC format, multiple BNC ports	~
	VGA/RGBHV	Multi-channel VGA DB-15 ports, support VGA full-format input	~
	HDMI, DVI, 4K-DVI, IP	Support 4K(3840x2160) input, each IP decode 4 channels	~
	YPbPr, YCbCr(customizable)	The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV	~
	SDI(customizable)	BNC Port	~
	AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized;	~	~
Input resolution	up to 4K,commonly used resolutions
Output signal format	VGA, RGBHV	signal channel XGA(1024x768@60Hz)/DB-15 port	~
	HDMI, DVI, 4K-DVI	HDMI, DVI output	~
	3G SDI(customzable)	BNC Port loop out	~
	AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized;	~	~
Output resolution	up to 4K,commonly used resolutions
Control	Standard RS232 port
	IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365x7x24hrs

Hareware video wall controller U Chassis Specs

Chassis U size	Controller Dims(mm) LWH	Pack dims(mm) LWH	N.W(kg)	G.W(kg)	Max input Nos.	Max output Nos.	Max Power Consumption(Watts)
2U	406×440×102	590×530×190	11.25	12.25	8	8	200
3.5U	450x440x170	620x620x270	18.25	19.25	16	16	320
7U	442×402×320	590×530×460	29.5	31.50	32	32	400
12.5U	446×440×553	625×580×725	37.85	39.85	71	68	750
23U	442×43×1022	615×570×1180	80.46	82.46	143	140	1300

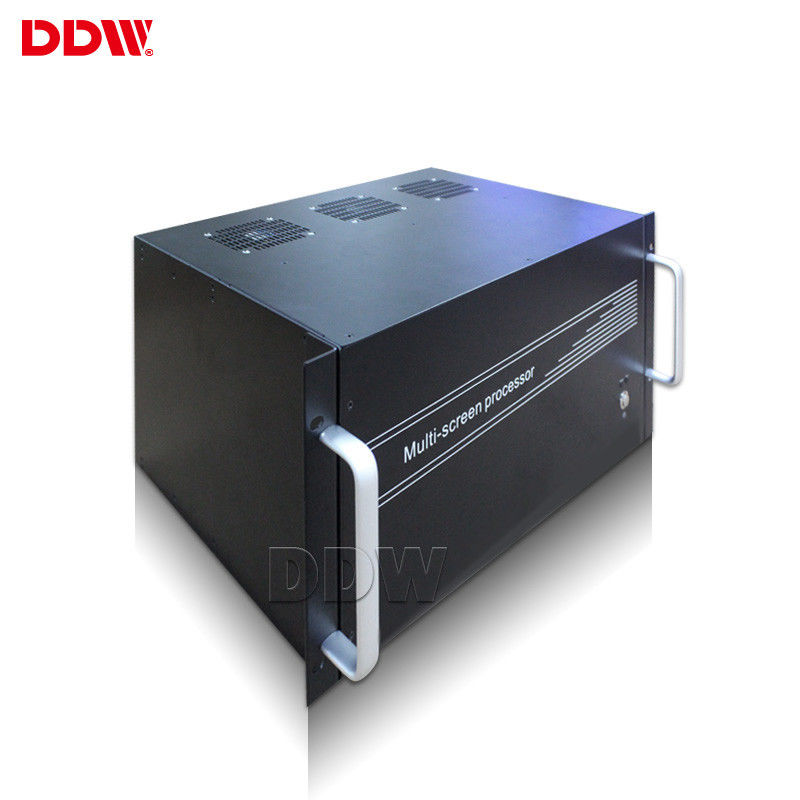

32 HDMI Output LED Video Wall Scaler 4k Video Wall Controller 1920 X 1080 Output 0
