Conference Room Video Wall HDMI Controller , 3.2Gbps Data Rate Video Matrix Processor

China Conference Room Video Wall HDMI Controller , 3.2Gbps Data Rate Video Matrix Processor supplier
Conference Room Video Wall HDMI Controller , 3.2Gbps Data Rate Video Matrix Processor supplier Conference Room Video Wall HDMI Controller , 3.2Gbps Data Rate Video Matrix Processor supplier Conference Room Video Wall HDMI Controller , 3.2Gbps Data Rate Video Matrix Processor supplier

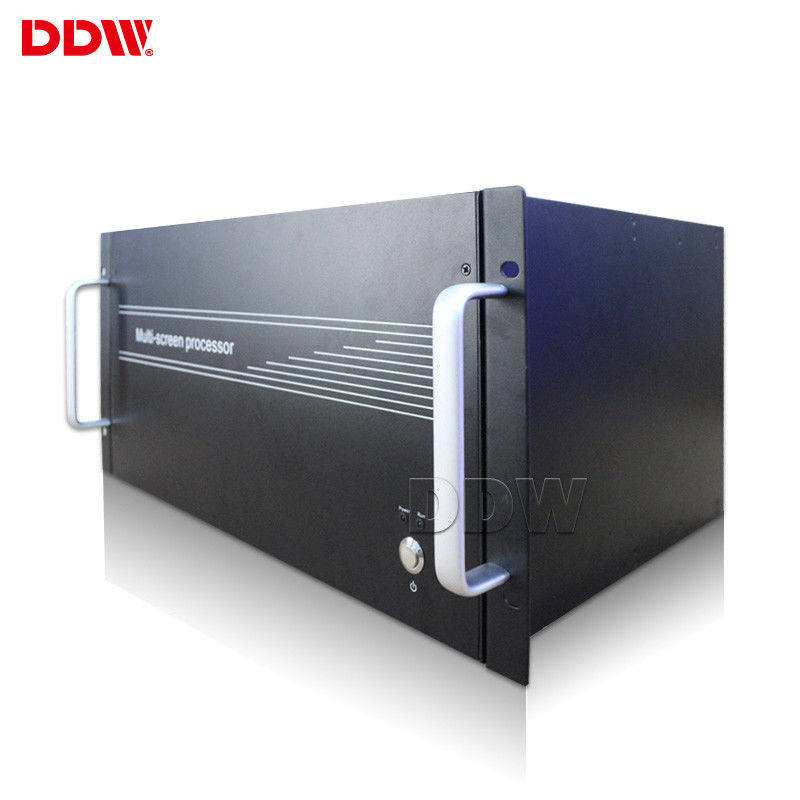

Large Image :  Conference Room Video Wall HDMI Controller , 3.2Gbps Data Rate Video Matrix Processor

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH3636

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Output Resolution: 1920*1080,1920*1200 Max PIP Per Screen: 1,4,16,customization
Product Name: Video Wall Scaler Maximum Input Numbers: 36
Maximum Output Numbers: 36 Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
Control Method: RS232,LAN Consumption: 12W/channel

Conference Room Video Wall Scaler 3.2Gbps Data Rate Full Hardware Configuration


Video Wall Scaler has following key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200

DDW Video Wall Scaler is one of professional modularized and hardware Video wall processor which supports HDMI,DVI,VGA,AV,YPBPR, each channel support 1920 x1200 resolution signal inputs and outputs,RS232 and IP control method.Video wall processor can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.



Support PC, mobile control software pre-monitoring display

  •  Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
  •  The operating signal source can be selected more intuitively as needed;
  •  On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;



DDW Video Wall Scaler Technical Specifications

Model series With CBD Function No CBD
Function description

4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs



Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
2U 406×440×102 590×530×190 11.25 12.25 8 8 200
3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300
