Multi Screen PC Video Wall Controller 3x2 Audio Video System For CCTV Surveillance Center

China Multi Screen PC Video Wall Controller 3x2 Audio Video System For CCTV Surveillance Center supplier
Multi Screen PC Video Wall Controller 3x2 Audio Video System For CCTV Surveillance Center supplier Multi Screen PC Video Wall Controller 3x2 Audio Video System For CCTV Surveillance Center supplier Multi Screen PC Video Wall Controller 3x2 Audio Video System For CCTV Surveillance Center supplier

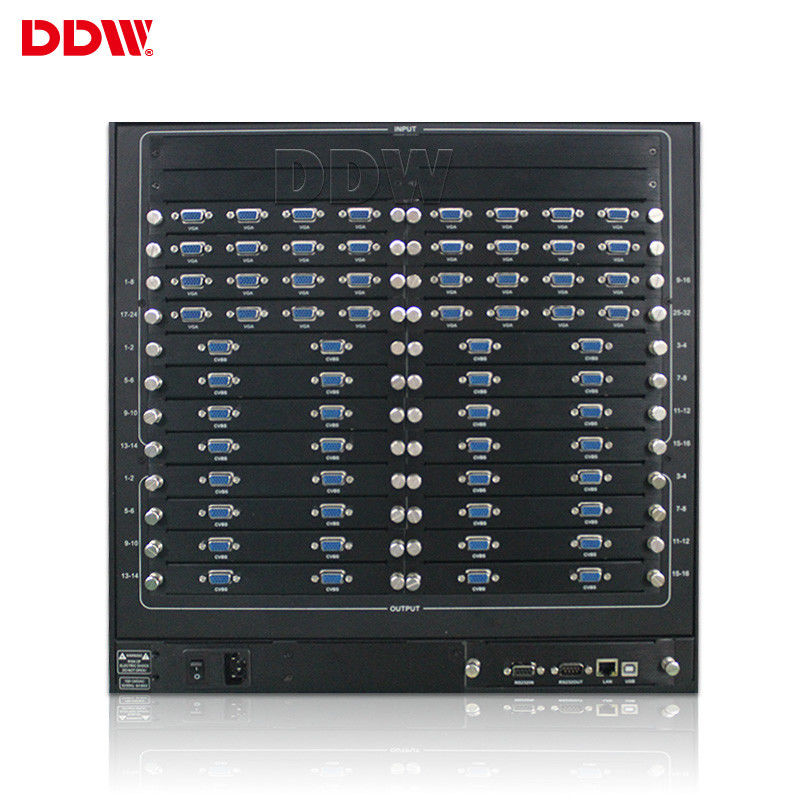

Large Image :  Multi Screen PC Video Wall Controller 3x2 Audio Video System For CCTV Surveillance Center

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1818

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Panel Brand: Samsung LG Output Resolution: 1920x1080
Roam,zoom,PIP: Support Max PIP Per Screen: 1,4,16,customization
Color Quality: PC Video Wall Controller Maximum Input Numbers: 18
Maximum Output Numbers: 18 Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP

4k 18x18 PC Video Wall Controller Audio Video System For CCTV Surveillance Center




Multi – group video wall management:

  •  Video Wall Processor can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
  •  Setting different resolutions, adjust colors and other parameters.



Support PC, mobile control software pre-monitoring display:

  •  Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
  •  The operating signal source can be selected more intuitively as needed;
  •  On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;

Integrated control function:

  •  Integrated control serial port control interface;
  •  Transferred out RS232, RS485, DMX512 type command, control the projector, large screen switch, curtain lift and so on;


DDW PC Video Wall Controller Technical Specifications

Model series With CBD Function No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input,

support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs


Technical specification of input/output connectors

VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female
