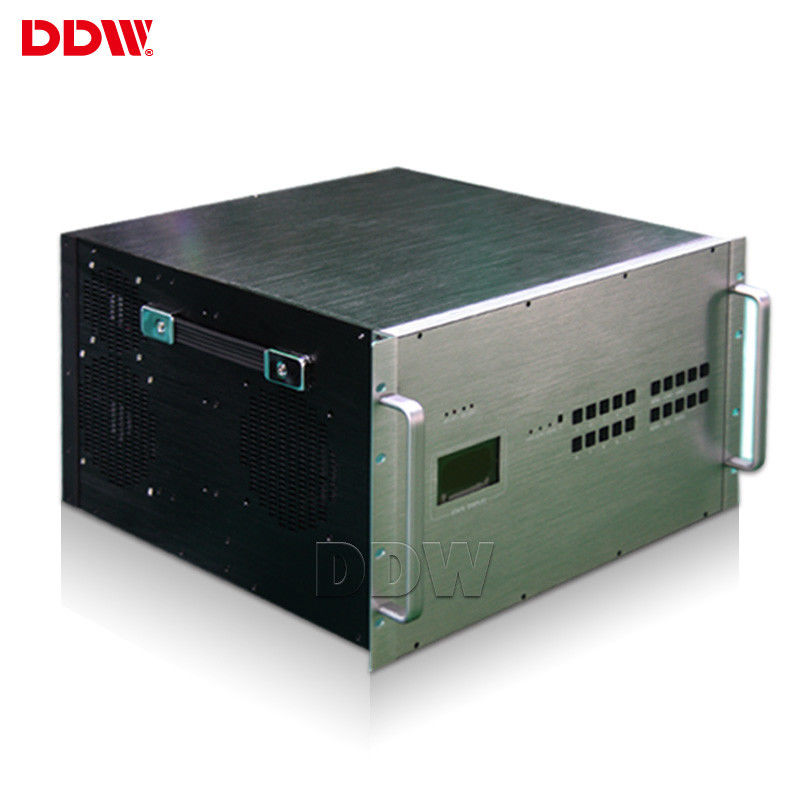

Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software

Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software

    • Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software
    • Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software
    • Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software
  • Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VPH1414

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Video Wall Control Box Output Resolution: 1920*1080
    Roam,zoom,PIP: Support Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Control Method: RS232,IP Baud Rate: 115200
    High Light:

    hd video controller

    ,

    video display controller

    Customized Video Wall Control Box For Meeting Room Special Control Software DDW-VPH1414



    Video Wall Control Box​ Performance:
    1, Response time is less than 6ms, which is prompt
    2, Embedded 3D digital signal noise reduction, support 1920x1080 resolution.
    3, Signal interface --- RS232, HDMI, DVI, VGA, YPbPr, AV
    4, RS232 control, easy operation for the system by control software

    5, Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 or any combination customized



    Video Wall Control Box​ key features:
    1. Full hardware configuration without operating system
    2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
    3. Real time image display, no dropped frames
    4. Support display at arbitrary position, at any size and any superimposed
    5. Support open-window effects processing
    6. Support large-screen image freeze
    7. Support 7 x 24 uninterrupted and stable working
    8. Flexibility to increase the input/output board
    9. Support partial input and output cards with mixed interpolation
    10. Input/output card supports hot-swappable, plug-and-play functionality
    11. Output resolution up to 1920 x 1200



    DDW Video Wall Control Box Technical Specifications

    Model series With CBD Function No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input,

    support multiple splicing player freely , and can show different

    sigal at the same time to the system,require screen built in daisy chain board

    ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
    VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
    HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
    YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
    SDI(customizable) BNC Port ~
    AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
    Input resolution up to 4K,commonly used resolutions
    Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
    HDMI, DVI, 4K-DVI HDMI, DVI output ~
    3G SDI(customzable) BNC Port loop out ~
    AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
    Output resolution up to 4K,commonly used resolutions
    Control Standard RS232 port
    IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs



    Hareware video wall controller U Chassis Specs

    Chassis U size Controller Dims(mm)
    L*W*H
    Pack dims(mm)
    L*W*H
    N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
    2U 406×440×102 590×530×190 11.25 12.25 8 8 200
    3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
    7U 442×402×320 590×530×460 29.5 31.50 32 32 400
    12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
    23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300



    Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software 0Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software 1Customized Videowall Controller For Multi Screen Display Meeting Room Special Control Software 2
