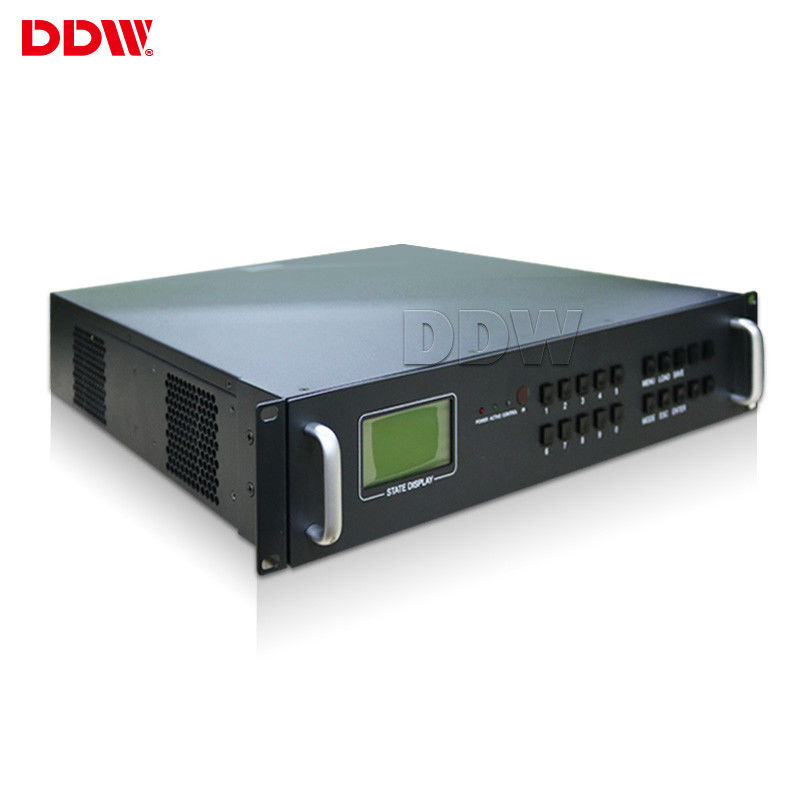

12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female

12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female

    • 12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female
    • 12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female
    • 12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female
  • 12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VPH0505

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Input Output Numbers: 4 Input 4 Output Output Resolution: 1920*1080
    Color Quality: 32bit Roam,zoom,PIP: Support
    Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP Baud Rate: 11520
    Product Keywords: Video Wall Control Box OEM: Yes
    High Light:

    hd video controller

    ,

    lcd video wall controller

    12W/Channel 4k Video Wall Control Box 2x2 Special Control Software RJ-45 Female




    Video Wall Control Box​ key features:
    1. Full hardware configuration without operating system
    2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
    3. Real time image display, no dropped frames
    4. Support display at arbitrary position, at any size and any superimposed
    5. Support open-window effects processing
    6. Support large-screen image freeze
    7. Support 7 x 24 uninterrupted and stable working
    8. Flexibility to increase the input/output board
    9. Support partial input and output cards with mixed interpolation
    10. Input/output card supports hot-swappable, plug-and-play functionality
    11. Output resolution up to 1920 x 1200


    Video and Image Processing :
    1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
    2. Inputs/windows can be resized, layered and positioned across screen boundaries
    3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
    4. Input sources can be cropped to remove the edge pixels and lines
    5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

    DDW Video Wall Control Box Technical Specifications

    Model series With CBD Function No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
    VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
    HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
    YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
    SDI(customizable) BNC Port ~
    AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
    Input resolution up to 4K,commonly used resolutions
    Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
    HDMI, DVI, 4K-DVI HDMI, DVI output ~
    3G SDI(customzable) BNC Port loop out ~
    AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
    Output resolution up to 4K,commonly used resolutions
    Control Standard RS232 port
    IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs



    Hareware video wall controller U Chassis Specs

    Chassis U size Controller Dims(mm)
    L*W*H
    Pack dims(mm)
    L*W*H
    N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
    2U 406×440×102 590×530×190 11.25 12.25 8 8 200
    3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
    7U 442×402×320 590×530×460 29.5 31.50 32 32 400
    12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
    23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300



    12W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female 012W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female 112W/Channel 4k DVI Loop Video Wall Control Box 2x2 Special Control Software RJ-45 Female 2
