VGA 4K DVI Loop Video Wall Control Box Hdmi For Multi Screen Display 12W/Channel

China VGA 4K DVI Loop Video Wall Control Box Hdmi For Multi Screen Display 12W/Channel supplier
VGA 4K DVI Loop Video Wall Control Box Hdmi For Multi Screen Display 12W/Channel supplier VGA 4K DVI Loop Video Wall Control Box Hdmi For Multi Screen Display 12W/Channel supplier VGA 4K DVI Loop Video Wall Control Box Hdmi For Multi Screen Display 12W/Channel supplier

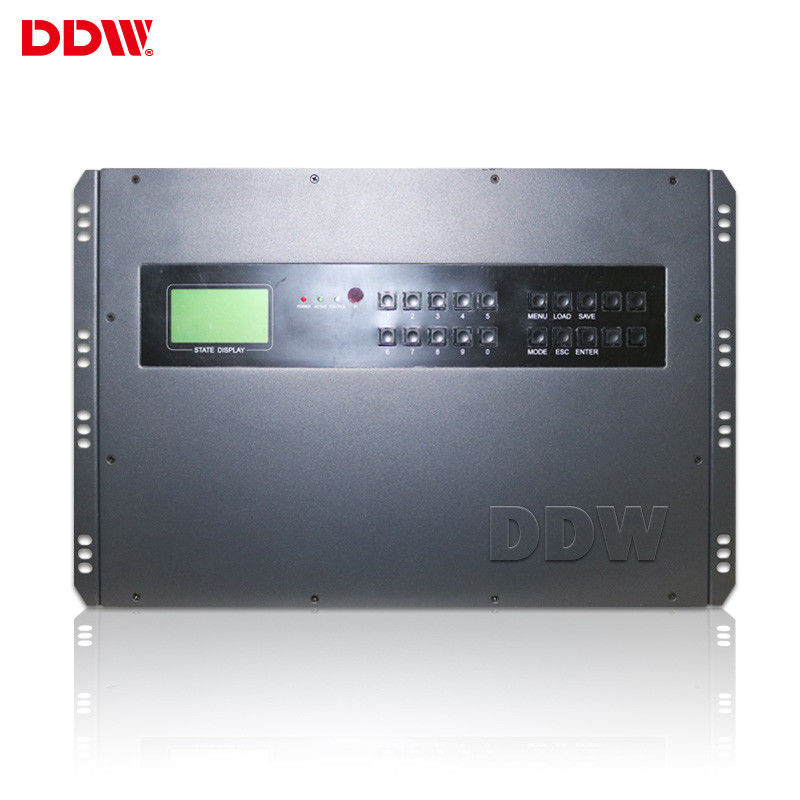

Large Image :  VGA 4K DVI Loop Video Wall Control Box Hdmi For Multi Screen Display 12W/Channel

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1616

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Input Output Numbers: 16 Input 16 Output Output Resolution: 1920*1080
Max PIP Per Screen: 1,4,16,customization Color Quality: 32bit
Roam,zoom,PIP: Support Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
Product Name: Video Wall Control Box Working Humidity: 5-95%

Hdmi VGA 4K Video Wall Control Box For Multi Screen Display




Video Wall Control Box​ has following key features:
1. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
2. Support display at arbitrary position, at any size and any superimposed
3. Support open-window effects processing
4. Support large-screen image freeze
5. Full hardware configuration without operating system
6. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
7. Support for DIV,HDMI,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats
8. Support DIV and 3G-SDI signal output
9. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats
10. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously

Video Wall Control Box​ Technical Specifications

Model series With CBD Function No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs



Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
2U 406×440×102 590×530×190 11.25 12.25 8 8 200
3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300
